Introduction





With the avalanche of a variety of hand-held devices and the brimming popularity and affordability of mobile telephones, palm-tops, Personal Digital Assistants (PDAs) etc., wireless communication is a concept whose time has come. In order to implement software that runs on these wireless devices, there exists a scripting language known as Wireless Markup Language Script (WMLScript), which has evolved from the Wireless Markup Language (WML).



In order to comprehend the need for the creation of a language like WMLScript, the drawbacks of its precursor viz. WML have to be understood. In the first Chapter, we shall provide a general overview of the WMLScript language, especially in the context of how it has overcome the drawbacks of WML; and introduce you to some of the basic concepts of the language.



Wireless Markup Language (WML) is infested with a myriad problems. They are as follows :

(a) It is static in nature.

(b) Even though it has the concept of variables, initialising these variables is not as simple as it is in any other programming languages.

(c) It doesn't support the features that other programming languages do.



As a consequence, you cannot write code that is dynamic. Dynamic in this context means, the ability to modify the behaviour of the program while it is running. Therefore, in this sense, WML is similar to HTML. In both cases, you cannot write programs which have sufficient in-built intelligence. WML also fails to offer you the requisite level of flexibility.



Netscape was able to identify this lacuna a long time ago. They also found that products like Dbase was very effective for the job they were meant to do, i.e. handling databases. But, they had their limitations in terms of the level of complexity and magnitude that they could handle. You obviously cannot use the Dbase family of products to send a man on the moon. Once upon a time, when one wanted to write a business application, there was no product more effective and swifter than Dbase. Today, there are a plethora of other software products. In order to overcome the lack of intelligence of HTML, Netscape decided to invent a product that could be embedded in HTML, which they christened as LiveScript. LiveScript is a programming language, which was invented to add intelligence to the browser and provide it with a full-fledged programming environment.



With Livescript, Netscape wanted to provide a facility whereby, HTML code could be interspersed with Script code. Unfortunately, this product was much ahead of its times. In those days, LiveScript was still in its infancy and was unheard of in programming circles. Netscape, on realising that Java was the current  flavour of the town, renamed this product as JavaScript.  Later on, however, Java became the International Standard.



The WAP professionals also wanted to develop a software that was of International Standards.  So they amalgamated a major part of ECMAScript and JavaScript and named it as WMLScript. The difference between WMLScript and JavaScript is that you cannot embed WMLScript in WML, whereas JavaScript can be embedded in HTML. In the case of WMLScript and WML, you have to call them separately. So, in the case of  WMLScript, within WML, you can use href and instead of going to a certain card, or going to another site on the net, you can call a WMLScript function.



In our very first program, we have performed a very simple task. We have a do, /do and in that we have a go href. We have named the WMLScript file as aaa.wmls. The suffix "wml" signifies that it is a WML file, and the 's' added to it signifies that it is a WMLScript file.



Screen 1. 1

a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card>

<do type="aa">

<go href="aaa.wmls#abc()"/>

</do>

<p>

Hello World!!!

</p>

</card>

</wml>



Just as a deck is a collection of cards, a WMLS file is a collection of functions. If you want to execute a certain function in the WMLS file, you have to put a #. Further, instead of the name of a card, you are required to mention the name of a function with round brackets i.e. ( ) .



When you compile this WML file and run it, nothing will happen ! If you then click on options and click again with i selected, you will get a message saying that there is no file called aaa.wmls.  This is as depicted below in fig 1.1.

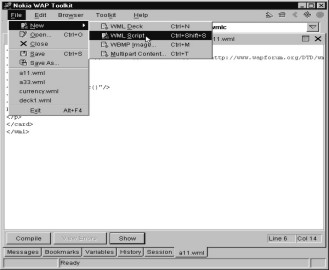

You will have to click on File - New to indicate that you want to create a WML Script file. It creates a small program. Here the program contains an extern function and foobar with ( ).



Screen 1. 2

Screen 1. 3

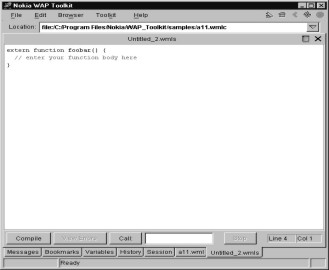

Whenever you see the word foobar, (as the Americans like to call it), it is an indication that you have to enter your own function name. The word extern suggests that the function can be called from outside this file, i.e. from a WML file.  If you don't use the word extern, then it doesn't accept it as a function.



On the next line, you can see a pair of curly braces - { and }. These indicate the start point and end point of the code. These are used instead of a begin or end, a similar syntax used in other languages. There is no need to reiterate time and again that WMLScript and JavaScript look and feel just like the C programmimg language.



In order to ignore any text in a WMLScript file, you should begin the line with two slashes i.e. //. This indicates that the following text is a comment. It is ignored by the compiler. That is why, the line containing the text "enter your function body here" which starts with two slashes, gets ignored.  We initially decided not to disclose to you as to why two slashes are used for marking comments, but we subsequently changed our minds. Two slashes are used because the C programming language follows this convention.



Earlier, C used /* */ for comments. You could use this combination for marking comments and within it, you could have 6 lines of comments. When the newer versions of C and C++ were released, the syntax was amended to consist of only two slashes because, it was decided to put comments on a single line.



When you remove the comments and change the name foobar to abc, the program that you will obtain is as follows :



Screen 1. 4



 aaa.wmls

 extern function abc()

 {

 // enter your function body here

 }



Screen 1. 5

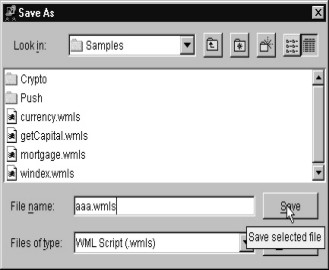

After this function is written, nothing will happen since the code was not compiled. So always remember to compile the code. In order to do so, you will have to click on a button called Compile. On doing so, the name aaa.wmls gets transformed into aaa.wmlsc. The suffix 'c' at the end of the name indicates that the file has been compiled.



Screen 1. 6

When you execute the WML file, you will realize that nothing happens. Nothing happens because there is no code in the WMLS file. The program doesn't give any error either. You may wonder as to why we are doing what we are doing.  We are doing so because we want flexibility. We want to display the string "Hello World". One way to do this would be to put it in the WML file as we have seen in the earlier example. In this case, "Hello World" will be displayed. Here we are hard-coding it or committing ourselves to the contents of the string.  In order to have some flexibility, we can use variables.













In the next example we use variables to lend flexibility to the code. The text and the variables are placed within <p> </p>.



a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card id="c1" newcontext="true">

<do type="aa">

<go href="aaa.wmls#abc()"/>

</do>

<p>

Hello $aa

</p>

</card>

</wml>



When you run the WML file, it will show a blank screen because $aa is unset. Before we go further, write this code in the function abc in the aaa.wmls file.



 aaa.wmls

 extern function abc()

 {

 WMLBrowser.setVar("aa","World")

 }

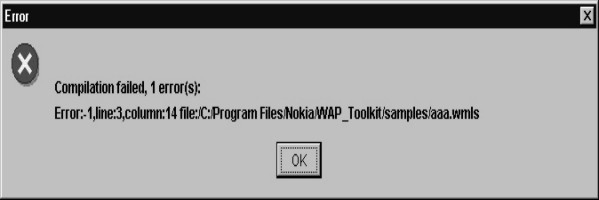

At this stage, if you click on compile, you will get an error message.



Screen 1. 7



This is because every time you write a line of code, you must end it with a semi colon  i.e. ;. A semicolon marks the end of a statement. Creators of the WMLScript decided to use a semicolon. Incidentally, JavaScript also uses semicolons. JavaScript does so because C uses semicolons at the end of every statement.  So, we now put a semicolon and then compile it.  Go back to the WML file to run the script.



Screen 1. 8

Screen 1. 9

Screen 1. 10



You will see Hello World displayed on your screen as aa now contains World.

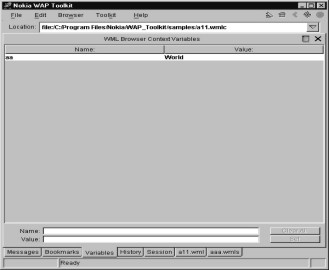

Click on the Variable tag at the bottom. It will show a variable called 'aa', which has the value "World".



Screen 1. 11



By executing the WMLScript function, you have actually changed the value of aa to 'World'. You have done this dynamically using go href, but this function called abc could have been called by saying onenterforward also.  Whenever you have to perform a task, you can use a go and using go you can call the function.



Onenterforward gets called on startup and there you can initialize the variable in a function and use the values. Let's now understand the script.



WMLScript gives you many things for free. We call them Libraries, or Objects. The WMLBrowser is a Library and a Library has functions. In our script, abc is a function. Similarly, WMLBrowser has a function called setVar. By convention, the library name and the function name are separated by a dot. That is why we use the syntax WMLBrowser.setVar. In the setVar function, you have to give the name of the variable. In our case, the variable name is 'aa' and the value that it contains is "World". This is how the value of 'aa' is  set to "World". There is one more function called refresh in the WMLBrowser Library. This is shown in the next script. In the previous version, the Browser showed no output unless it was refreshed.



Screen 1. 12



 aaa.wmls

 extern function abc()

 {

 WMLBrowser.setVar("aa","World");

 WMLBrowser.refresh();

 }











This piece of code shows that WMLBrowser has two functions, setVar and refresh. When you call the function refresh, it initialises the variable and refreshes the screen as well. It refreshes the value of the variable. The statement $aa will now display the value "World".



Whitespace, consisting of space, tab, carriage return (enter) does not make any difference in the code. You can put all the code on one line if you so desire. The semicolons matter since they indicate the end of a statement. You should use spaces and carriage returns to format the code in a systematic manner and not because the syntax of WMLScript demands it.



aaa.wmls

extern function abc() { WMLBrowser.setVar("aa","World"); WMLBrowser.refresh();}



The important point is that since you are setting the values of variables dynamically in WMLScript, they will change in the WML file. Hence we now go to the card and say newcontext=true so that we start afresh each time.



In any programming language, the first thing that one looks for is what goodies is one getting for free. Here we get WMLBrowser for free. WMLBrowser has a function called setVar. It doesn't have a function called setVars so you get a compilation error.



 aaa.wmls

 extern function abc()

 {

 WMLBrowser.setVars("aa","World");

 WMLBrowser.refresh();

 }



Screen 1. 13



The name is WMLBrowser and not WMLBrowsers. This also generates an error message. This only implies that you can't just choose your own names out of a hat. You have to be very careful about the spellings.



 aaa.wmls

 extern function abc()

 {

 WMLBrowsers.setVar("aa","World");

 WMLBrowser.refresh();

 }



You will notice the change in color as the word is not recognised.



Screen 1. 14



Another significant thing to be noted is that WMLBrowser, which is predefined, is case sensitive. Since WMLScript is a case-sensitive language, the B of Browser should be capital and the V of setVar should be capital.



 aaa.wmls

 extern function abc()

 {

 WMLBrowser.setvar("aa","World");

 WMLBrowser.refresh();

 }



The color changes to black for setvar as it is not understood.



Screen 1. 15



 aaa.wmls

 extern function abc()

 {

 WMLbrowser.setVar("aa","World");

 WMLBrowser.refresh();

 }



This displays the same error as before.



It is important to note that whatever is within double inverted commas is NOT case sensitive. It can have any case. All the remaining syntax is case-sensitive.

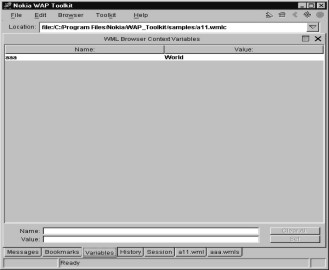

The next issue is that of the name of the variable. Here, instead of "aa" we have used "aaa". When you go back, the variable "aa" in the WML file will be unset. But when you click on the variables tab in Nokia, it will tell you that the variable "aaa" has been created. This has a value of "World". This does not generate an error. What this signifies is that when you have a setVar and if the variable is not defined in WML, a new variable gets created.



 aaa.wmls

 extern function abc()

 {

 WMLBrowser.setVar("aaa","World");

 WMLBrowser.refresh();

 }



Screen 1. 16



Screen 1. 17



So the first major use of WMLScript is that you can use variables extensively and you can parameterise it. As we have learnt in the WML section, variables can be placed  in context, attributes, or you put them in a go, or take the input from a user which will be sent back to the server. So, these variables will be initialized in WML file, processed in WMLScript and they will show up in the WML file.



You will realise that variables are most important in WMLScript. To create a variable, you just have to use the keyword var and then give the name of the variable. In the next script we have used a variable called yy.



 aaa.wmls

 extern function abc()

 {

 var yy ;

 WMLBrowser.setVar("aa","bad");

 WMLBrowser.refresh();

 }



A variable is of no use if you can't assign a value to it. So we assign the value of 400 to yy using yy=400. There is still a problem. You have not used the variable yy anywhere.



aaa.wmls

extern function abc()

{

var yy ;

yy = 400;

WMLBrowser.setVar("aa","bad");

WMLBrowser.refresh();

}



Screen 1. 18



Screen 1. 19

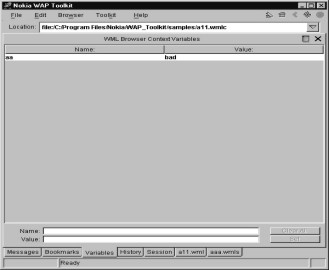

The setVar in this example simply sets the value of the variable aa to "bad". yy is not displayed in the Variable section.



Wherever we can use string numbers, we can also use variables. So instead of initialising the value of aa to "bad", we can use the variable yy. When you run the program, you will see that $aa gets initialized to the value 400.



Screen 1. 20

 aaa.wmls

 extern function abc()

 {

 var yy ;

 yy = 400;

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }









You cannot use a variable if you haven't created it or declared it. This is a very basic rule. There was absolutely no necessity of having this rule, but since it exists, we have complied with it and used  "var yy". If this line is deleted, it will generate an error.



 aaa.wmls

 extern function abc()

 {

 yy = 400;

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }



Screen 1. 21



Now we have used yy=400. The first thing that we would like to try out is some arithmetic. So we have used yy = yy+10.



Screen 1. 22

 aaa.wmls

 extern function abc()

 {

 var yy;

 yy = 400;

 yy = yy + 10;

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }







Whenever you have an equal to sign, always look to the right.  The value of the variable yy is 400. So 400 + 10 results in the value of yy being enhanced to 410. Similarly, you can also use the other arithmetic operators to subtract (-), multiply(*) or divide(/).



 yy = 400;

 yy = yy - 10;

 WMLBrowser.setVar("aa",yy);

 Hello 390



 yy = 400;

 yy = yy * 10;

 WMLBrowser.setVar("aa",yy);

 Hello 4000



 yy = 400;

 yy = yy / 10;

 WMLBrowser.setVar("aa",yy);

 Hello 40



These are called arithmetic expressions and you can combine them and make them as complicated as you like.



In the next example, we have set the value of yy to 400. Thereafter setVar sets aa to yy i.e. to the value of 400. Then we make yy equal to 500. The setVar takes the value of the variable at the time of execution. It does not do so with retrospective effect. So, since at that time, the value is of yy was 400, the value of aa also becomes 400. Subsequently, changing the value of yy to 500 has no effect.



 aaa.wmls

 extern function abc()

 {

 var yy;

 yy = 400;

 WMLBrowser.setVar("aa",yy);

 yy = 500;

 WMLBrowser.refresh();

 }



This example clearly explains the necessity of using only one setVar. This is so because only the last setVar will take effect.



Screen 1. 23

 aaa.wmls

 extern function abc()

 {

 var yy;

 yy = 400;

 WMLBrowser.setVar("aa",yy);

 yy = 500;

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }





Here the value of 500 that is assigned to yy will take effect and the refresh will be done at the end of the program.



We have already explained to you as to how you can create your own variables. Wherever you can use a number and a string, you can also use a variable instead. At this stage, you would want to know the reason for having an open and close bracket in WMLS. That's where we can give parameters. In WMLScript, all the text can be enclosed either in double or single quotes. You are at liberty to choose which one you want. Here, we are using a parameter called nono. Similar to the way in which setVar took two parameters, this nono is in double quotes. Since we have already used double quotes, it will give you an error message.



 a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card newcontext="true">

<do type="aa">

<go href="aaa.wmls#abc("nono")"/>

</do>

<p>

Hello $aa

</p>

</card>

</wml>



You therefore have no choice but to use single quotes instead.



a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card newcontext="true">

<do type="aa">

<go href="aaa.wmls#abc('nono')"/>

</do>

<p>

Hello $aa

</p>

</card>

</wml>



You will realize that in abc, we haven't changed anything but we don't get any error message either. So abc should now accept one parameter. We have named this variable as zz. Now zz is assigned the value of nono. When we say setVar zz, the value of aa becomes nono. The output that will be displayed is Hello nono.  Thus, we have been able to pass parameters to a function.



Screen 1. 24

 aaa.wmls

 extern function abc(zz)

 {

 WMLBrowser.setVar("aa",zz);

 WMLBrowser.refresh();

 }













It is worthwhile to note that WML is not too fussy about whether the parameter is a number or a string. So you can use either nono or 100. Both are allowed.



Screen 1. 25

a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card newcontext="true">

<do type="aa">

<go href="aaa.wmls#abc(100)"/>

</do>

<p>

Hello $aa

</p>

</card>

</wml>





aaa.wmls

extern function abc(zz)

{

WMLBrowser.setVar("aa",zz);

WMLBrowser.refresh();

}



Here we have two parameters . We call them zz and yy.



Screen 1. 26

a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card newcontext="true">

<do type="aa">

<go href="aaa.wmls#abc(10,20)"/>

</do>

<p>

Hello $aa

</p>

</card>

</wml>



 aaa.wmls

 extern function abc(zz,yy)

 {

 var xx = zz + yy ;

 WMLBrowser.setVar("aa",xx);

 WMLBrowser.refresh();

 }



One way of assigning values to functions is by passing them as parameters.  By passing values to functions as parameters, you can ask the function to do something and then you can change back the value of the variables.



We shall give you some examples which will demonstrate this concept. What is of significance here is that the go statement in WML can also have a setVar, which is used to set the value of a variable to a specific value. In this example, it sets the value of aa to 600.



Screen 1. 27

a11.wml

<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">

<wml>

<card newcontext="true">

<do type="xx">

<go href="aaa.wmls#abc()">

<setvar name="aa" value="600"/>

</go>

</do>

<p>

Hello $aa

</p>

</card>

</wml>



Let us look at the script now.



 aaa.wmls

 extern function abc()

 {

 var yy;

 yy = WMLBrowser.getVar("aa");

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }



WMLBrowser has a function called getVar. When you use getVar(aa), yy will contain 600. When you subsequently use setVar, you will see the new value.



If you want to send or pass something to your function, there are two ways of doing it :

(a) By using getVar to access the variable in WMLScript.

(b) By passing it as a parameter.



Once you obtain the value in WMLScript, you can change the variable back again.  Here, when we say getVar(aa),  aa will contain 600 as usual. You can thereafter assign it the value of 800 and change it again. It is for you to decide what you want to do.



If you comment out the setVar, the value of aa changes only because of the execution of setVar. If you comment out the setVar, yy will remain at 600. By merely changing yy to 800, aa doesn't change. It is only the setVar function that can change the value of aa.



Screen 1. 28

 aaa.wmls

 extern function abc()

 {

 var yy;

 yy = WMLBrowser.getVar("aa");

 yy = 800;

 WMLBrowser.setVar("aa",yy);

 WMLBrowser.refresh();

 }
