4. Setup and Deployment Projects



Whenever we download any software from the net for the Windows operating system, it comes crammed in a single file. This file invariably has the extension of .zip or .exe or .msi, or .cab, etc. The zip file is a compilation of multiple files, which may or may not be in a compressed form. It requires an unzip program, one of them called 'Winzip', to extract the files from the zip mode. An exe file is an executable file, which requires no external program, and can run on its own. However, the msi file, which contains an installation program, requires a Windows Installer program.



When a product has to be installed on the hard disk, the file that initiates the installation program, either has an 'exe' extension (for e.g. setup.exe) or a msi extension. This program brings forth a wizard, where relevant information has to be entered, for successful installation. The program also checks for the essential harddisk space and a location where the files are to be ensconced. At times, it may even call upon you to reboot the system.



Let us consider the case of any one of the software companies that we know. While a product is being developed, it allots the development of certain features to each one of the software programmers in the project team. Thus, by the time the product is ready, there are numerous files containing the source code, which need to be referred to. It is an awfully tedious and irksome exercise to merge all the files into one file. Besides, the files need to be placed in certain directories, for the program to be able to function as desired. The program may also want to add a Program Group to the Start menu and make amendments to the System Registry. Therefore, to make life a lot easier, a Setup program is developed, which contains a wizard that eases the job of deploying the project.



This chapter focuses on the Setup and the Deployment issues. It delves upon how life has become much more comfortable and snug, with the inbuilt features of the .Net framework, which buttress these issues. This setup program is accorded an extension of 'msi', under Windows.

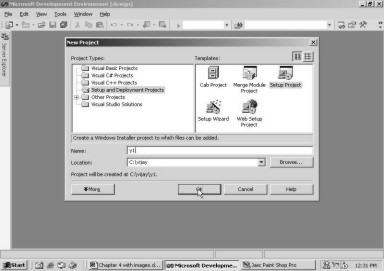

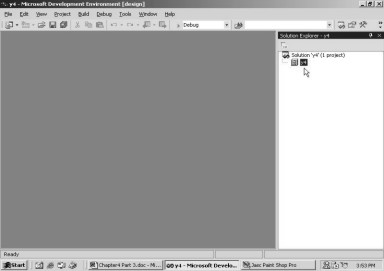

As is normally done, you need to ensure that all the windows and projects are closed in Visual Studio.Net. Now, click on the menu File - Project - New. In the New Project dialog box, choose the Setup and Deployment option in the Project Types pane and Setup Project in the Templates pane. Enter the name of the project as 'y1' and the location as c:\vijay. The screen 4.1 displays these selected options.



Screen 4.1



After clicking on the OK button, we arrive at screen 4.2. The screen doesn't appear very familiar.



Screen 4.2

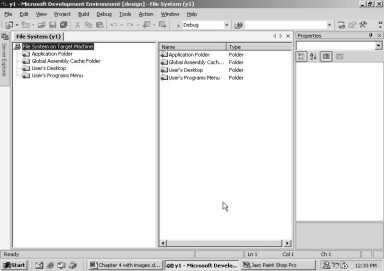

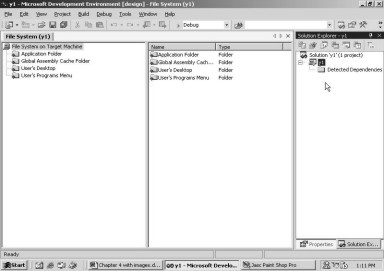

It would be a good idea if you too, would click on the View menu and select the Solution Explorer option. This would bring-in the Solution Explorer window on the extreme right, as is evident in screen 4.3.



Screen 4.3



Let us concentrate on the type of applications that we are working with.

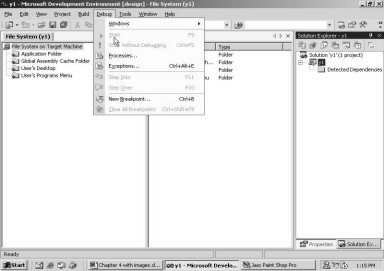

Earlier, we had clicked on the Debug menu, and then on Start. However, in case of the Setup project, the Start menu item is disabled, as shown in screen 4.4.



Screen 4.4



This obviously implies that we cannot run a setup program. Instead, it has to be built. Therefore, we click on the Build menu, and then, again on the menu option named Build, as seen in screen 4.5.



Screen 4.5

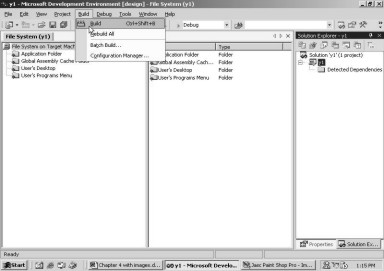

It is evident from the output window that the build has succeeded. So, how do we establish whether things are shaping-up the way we want them to?

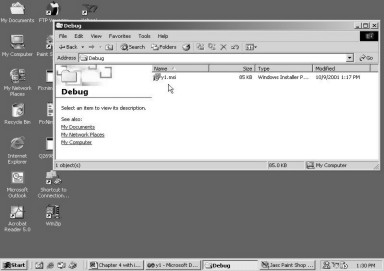

Double click on the My Computer icon on the Desktop and then, click on 'c drive'. Here, double click on the 'vijay' sub-directory, since this is the location that we have specified for all our projects. Amongst the other subdirectories, is the subdirectory of y1. Open up this folder by double clicking on it, and then, double click on the 'debug' subdirectory. Here, you would arrive at the installer program y1.msi.



Screen 4.6



Double click on the file y1.msi and view your screen, while the install program is running. Without writing a single line of code, we have created a setup wizard for y1. Screen 4.7 confirms this fact. Click on the Next button to arrive at screen 4.8.



Screen 4.7

Screen 4.8

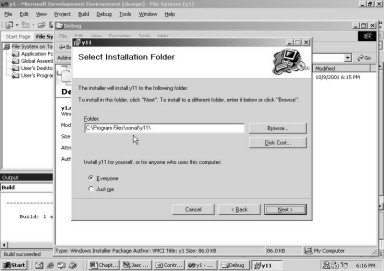

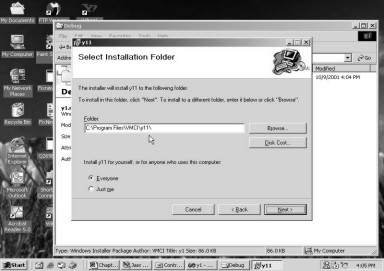

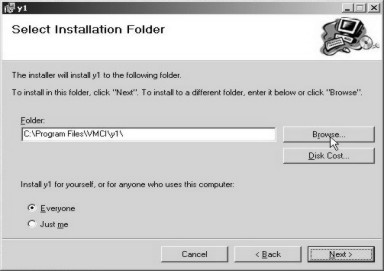

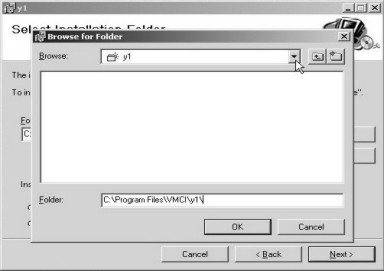

The default sub-directory, to which the files will be copied, is shown as C:\Program Files\VMCI\y1\ . If you are not too pleased with this location, click on the Browse button. This will lead you to a 'Directory Change' dialog box, as can be seen in screen 4.9.



Screen 4.9

Screen 4.10



Click on Cancel, in case you decide to change your mind, and carry on with the subdirectory assigned by default. This is exactly what we have done. This reverts us back to the previous screen, where we now click on Disk Cost.

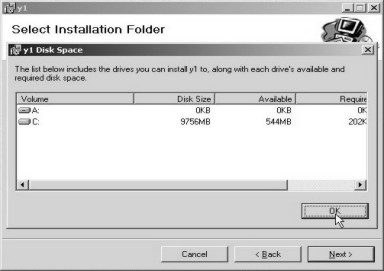

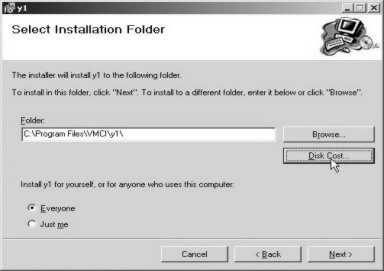

The Disk Cost button reveals a dialog box, as is apparent in screen 4.11. This dialog box displays the currently available drives on our machine, together with the size and space available on each of them, and the space required for the current installation. In spite of there being no files to be copied, the screen displays a requirement of 202K for our installation. Click on the OK button to close the dialog box. Once done, click on the Next button.



Screen 4.11

Screen 4.12

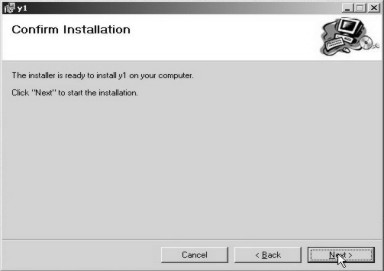

The screen that comes to the fore, asks for the final confirmation for the installation of the files, which are present in the installer package.



No sooner is the Next button clicked upon, does a screen spring up, showing a progress bar that indicates the proportion of installation that has been completed so far.

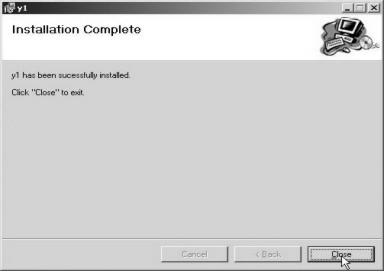

Once the files have been installed, the screen changes to the one reflected in screen 4.13, reporting the successful completion of the installation. Clicking on Close will take us out of this last dialog box of the wizard.



Screen 4.13



Now, in order to verify and identify the files installed by the installation program, we venture into the y1 sub-directory, within the VMCI sub-directory in Program Files.



To our utter dismay, no subdirectory by the name of y1 meets the eye. This makes sense, since the installer was not called upon to copy any files at all. As there were no files to be copied, there obviously wasn't any need to create a sub-directory.



Double click on the y1.msi icon again. We expected the same wizard to execute again. But, we were startled to find the screen displaying buttons to 'Repair' or 'Remove' the installation.



Screen 4.14

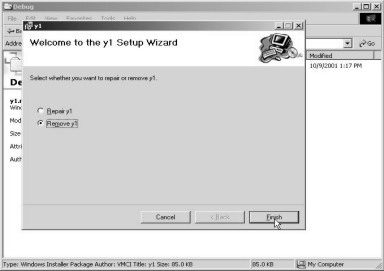

The default option selected is that of 'Repair'. This option is of great utility in situations where we may accidentally delete a file. In such circumstances, we may merely wish to copy the deleted file, instead of wasting a lot of time in reinstalling the whole package. The repair option is most ideal for handling such situations.



In the case of this particular application,we would rather undo the installation. Hence, we select the 'Remove' option and then, click on the Finish button. As always, the next screen that appears, shows a progress bar indicating the proportion of the task that has been completed. Once the task is over, the screen containing the Close button, is displayed.



We shall pursue the following approach for the setup programs:

•   After making the requisite modifications, we shall build the project.

•   Then, we shall run the installation program to install the files.

•   Thereafter, we shall examine the changes.

•   Ultimately, we shall run the installation program once again, to remove the installation.



This will ensure that we start afresh each time.



A question that torments our minds is,  'What would the installer program do to keep itself occupied, when we do not give it any files to be copied?'.



You would be able to obtain the answer, after executing the following steps:

•   Run the installer program once again, by clicking on the msi file.

•   Browse through the wizard in the same way, as was done before.

•   From the Start menu (Ctrl+Esc), choose Settings, and then, select the Control Panel.

•   Double click on the icon for 'Add/Remove programs'.

•   Scroll right down till you see 'y1' in the window.

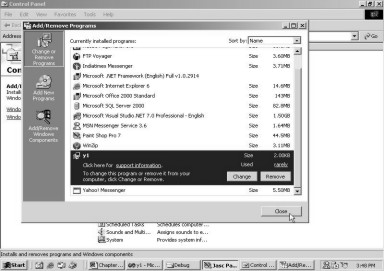

The screen 4.15 shows the 'y1' program, amidst the list of programs that have been installed.



Screen 4.15



Thus, the installer has registered our program with the Windows Installer. This is the reason why it figures in this list. Close the Add - Remove Program dialog box and Re-run the installer program in order to remove the program. Now, if you check the Add/Remove Program in the Control Panel, you will find no traces of the program.



Thus, the installer program not only displays the wizard containing the entire set of dialog boxes, which facilitate copying or removing the files, but it also registers/unregisters the program with the Windows installer.



Now, you may incorporate a slight modification to the project. Bring up the Properties window by pressing F4. Choose the property called ProductName, and change its value to y11. This is shown in screen 4.16.



Screen 4.16



Then click on Build - Build to generate the application. Then, run this installer program from the Debug sub-directory, and click on the Next button of the first screen. You will arrive at screen 4.17, where the name of the sub-directory is depicted as y11.



Screen 4.17

Screen 4.18



We will not persist with the installation, because no directories would be created, owing to the fact that there are no files to be copied. So click on the Cancel button. This does not terminate the installation immediately as it asks for final confirmation. Since we are sure that we want to exit the installation, we shall click on the 'Yes' button, and the last screen of the Wizard is displayed, indicating the installation status, before bidding adieu. The screen 4.18 reveals that the installation had been interrupted. Click on the Close button to end the installation. Since the modus operandi is to focus on a single feature at a time, we will cancel the installation after displaying and explaining the relevant portions. This saves the effort of uninstalling the application each time.

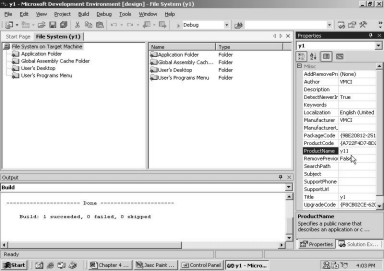

Now, we change the value of the Manufacturer property to 'sonal'. Also, instead of clicking on the Build menu option, followed by Build again, we will use the short-cut key Ctrl-Shift-B. Run the project, and then, click on Next button of the first screen. The screen that appears next is shown in screen 4.19. Notice that the subdirectory name after Program Files has changed from VMCI to sonal.



Screen 4.19



Cancel the installation. Now, let us make fresh modifications to the project. In the window, the first two panes are referred to as the File System Editor. As soon as we click on the Application folder in the first pane, the second pane goes absolutely blank.

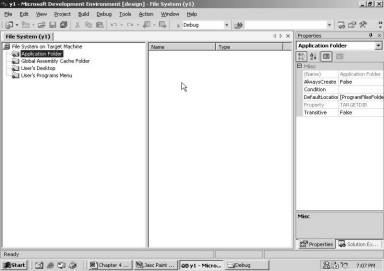

This is by reason of there being no files in this folder. For verification, you can view the screen 4.20.



Screen 4.20



We now wish to place a file named 'a.txt' in this folder. So, first create a file called a.txt containing whatever text you desire, in the root of C drive. You can use any program that would assist you in creating this file.

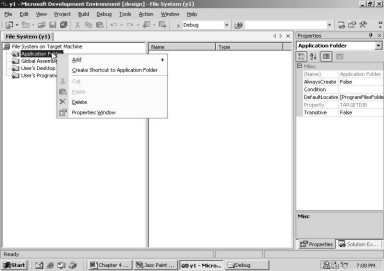

Once this is accomplished, right click on the Application folder, as shown in screen 4.21. This will display a popup menu, which is context sensitive.

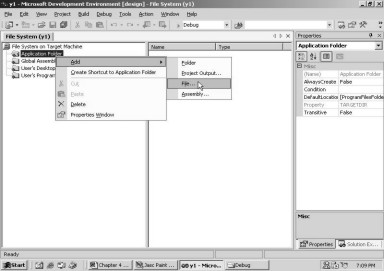

Screen 4.21



Remember the following cardinal rule in Windows: "If ever you feel lost, click the right mouse button, and you will be enlightened about the activities that you are allowed to carry out, in your present position."



Since we want to Add something, we move the mouse over the Add option. This is showcased in screen 4.22. Many of the items displayed with the Add option can be added to the Application folder. We select the File option, since presently, we are keen on learning how to add Files to the Application Folder.



Screen 4.22

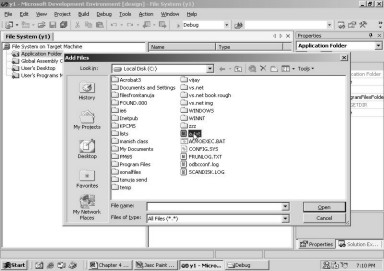

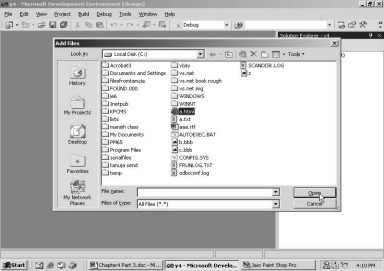

Now in the familiar File dialog box, navigate to the root of C drive, and choose the freshly minted file a.txt by double clicking on it. The screen 4.23 clearly delineates this act of ours.



Screen 4.23



Once the file has been selected, we revert back to the panes in the window. Screen 4.24 unfolds two changes, which have been effected because of our earlier actions.

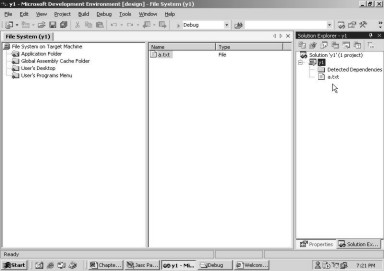

Screen 4.24



The file name a.txt makes an appearance in both, the second pane and the Solution Explorer. Press Ctrl-Shift-B to build the program. But, before running the program, delete the file a.txt from the c drive. This goes on to prove the fact that this file is dispensable, since the installer has included a copy of it in the file y1.msi, while building it.



Now, we adopt a different strategy to run the installer. In the Solution Explorer, choose the project y1, and not the solution, and right click on it. From the list of options displayed, select the Install menu option.



Screen 4.25



Now, execute the installation in its entirety. Then, go to the program files sub-directory to ascertain if a sub-directory called 'sonal' has been created with y11. Now, go to the sub-directory y11, where you will see a file called a.txt. Thus, the installation program has successfully copied the file a.txt into the requisite sub-directories of the target machine.

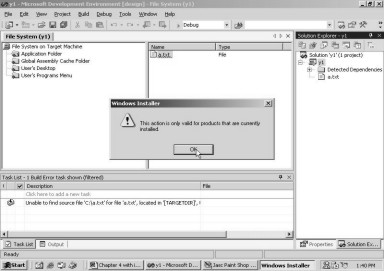

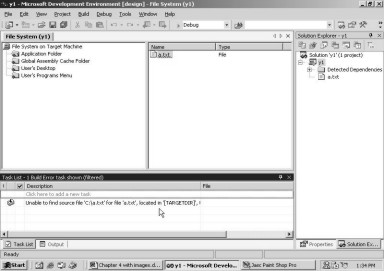

Now, on pressing the keys Ctrl-Shift-B, trouble brews, as shown in screen 4.26. The problem here is that, since we deleted the file a.txt from our machine, it could not get added to the file y1.msi. Thus, we need to create it once again.



Screen 4.26

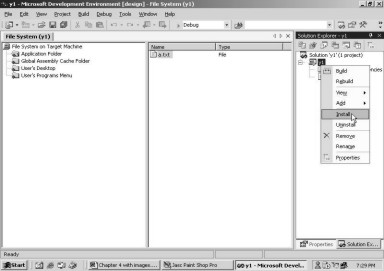

Click on the right mouse button after selecting y1 in the Solution Explorer, and then, select the UnInstall menu option. Before the product begins uninstalling, a message box appears on the screen, trying to verify our sanity (as shown in screen 4.27).



Screen 4.27



Once our sanity has been established, and we are absolutely certain that we want to uninstall the product, we click on the 'Yes' button. The process of un-installation gets executed without much ado.

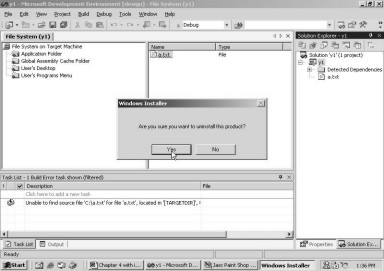

If you attempt to uninstall the product once again, the same box pops up, requesting for confirmation. On clicking the 'Yes' button, another message box emerges (as shown in screen 4.28), apprizing us of the fact that the unistall procedure works only on installed products. This proves that the installer is highly active and aware of the current state of the product, and has sufficient built-in intelligence.



Screen 4.28



Select the Application folder tab once again, and click with the right mouse button on the file a.txt. The popup menu is displayed, as expected. Select the option of 'Create Shortcut to a.txt'. This will reveal a screen, as seen in screen 4.29.



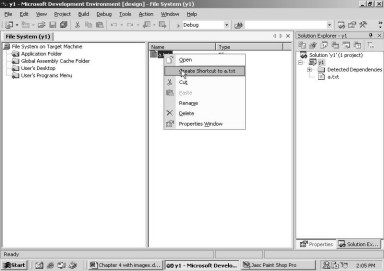

Screen 4.29

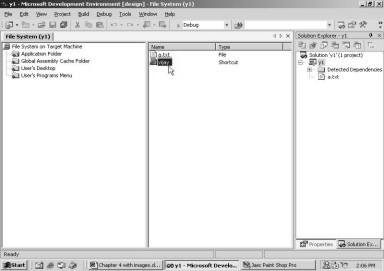

You can see that an entry has been made. Now, change the name of the shortcut to 'vijay'.



Screen 4.30



Select the shortcut 'vijay' and drag-and-drop it into the folder labeled User's Desktop, in the first pane. On doing this, the screen 4.31 is exposed to our view.

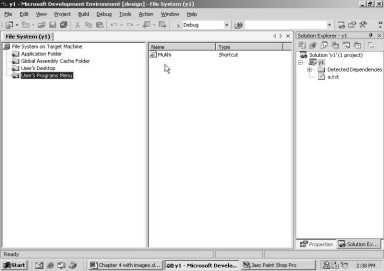

Screen 4.31

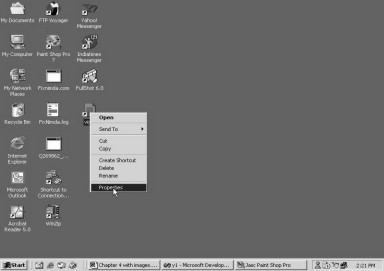

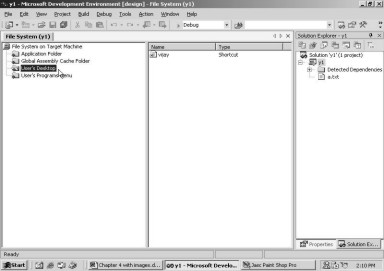

Most install programs copy a shortcut on the desktop. Whenever we click on a short cut, the program or the application associated with it gets executed. After recreating a.txt in the root, press Ctrl-Shift-B to build the project. Then, right click on the y1 project in the Solution Explorer, to select the Install menu option from the popup menu. Henceforth, we shall simply request you to 'run the installer', rather than reiterating these steps over and over again.



Once the installation is effected, click on the Close button and switch to the desktop. You will see the newly created icon named 'vijay', amongst the other icons on the desktop. Thus, we can copy a single file, as well as, multiple files and even shortcuts to the desktop. Right click on the shortcut named 'vijay', and select the menu option called Properties. Screen 4.32 shows the desktop that exists on our machine.



Screen 4.32



A dialog box will popup, (as seen in screen 4.33), which divulges relevant details about the shortcut.



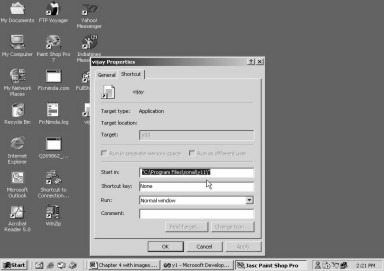

Screen 4.33

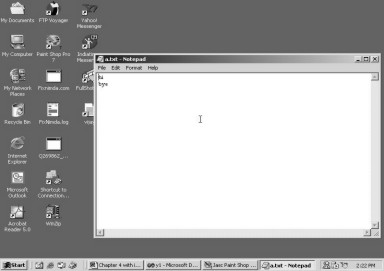

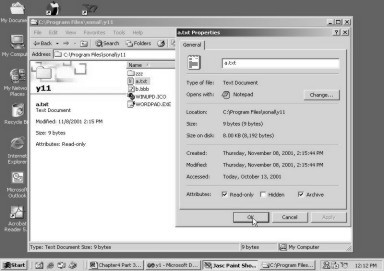

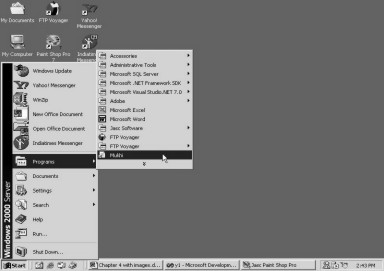

Close the dialog box and double click on the shortcut. The notepad application opens up, with the file a.txt displayed in it. The screen 4.34 shows the file a.txt in notepad.



Screen 4.34



Close notepad and switch to Visual Studio.Net framework. Uninstall the application by following the same steps that have been stipulated earlier. The Installer not only uninstalls the application, but it also deletes the shortcut from the desktop. Thus, the uninstall option eliminates each and every resource installed by the installation program.  Therefore, the subdirectories that were created, such as, 'sonal' and y11, shall also be deleted. However, while uninstalling, if these subdirectories are in use, then they shall not be deleted.



Click on the application folder and select the file a.txt. Select the 'create shortcut' option once again, and rename the shortcut to 'Mukhi'. Then, select 'Mukhi' and drag-and-drop it inside the folder called User's Program Menu. The screen 4.35 displays the shortcut in the User's Program Menu.



Screen 4.35



Press Ctrl-Shift-B to build the project, and then, run the installer. Once the installation has been concluded, click on the Start Menu (Ctrl+Esc), and go to the Programs option. Having selected Programs, the programs that can be executed under this option, are exhibited. Within it, the option 'Mukhi' is also displayed. It gave us great satisfaction to see the screen, which is shown in the screen 4.36.



Screen 4.36



Clicking on 'Mukhi' will lead us to the a.txt file in notepad. Thus, the installer program has been able to add a menu to the user's menu. If you uninstall the program, the menu called 'Mukhi' also disappears.



The next modification illustrates how a particular File Type can be associated with an Application. The imperative task on hand is, to ensure that the installation program registers the file extension 'bbb' with the Wordpad application. This is to ensure that, each time we click on a file with an extension of 'bbb', the Wordpad application should start and display the contents of this file.



Select the Application folder, and click on the right mouse button. Now, select the Add menu option and the File option. This was demonstrated earlier, while adding the file a.txt. This  brings up the Add File dialog box, as was evident earlier too. Navigate to the Accessories directory from Program Files and then, select Wordpad.exe. This will ensure that both, WordPad and a.txt, are copied to the target computer.



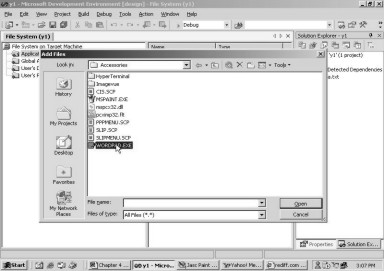

Screen 4.37



In the root of C drive, create a file called b.bbb, which could contain just about anything under the sky. Once the file has been created, choose the Application folder yet again, and right click on Add, followed by File, to add the file b.bbb.



The second pane for the application folder now displays three files: a.txt, b.bbb and Wordpad.exe. Once the required files have been incorporated, select b.bbb and click the right mouse button. Then, choose the Create Shortcut menu option and rename it as 'sunny'. Now, drag-and-drop the shortcut 'sunny' into the User's Desktop tab, which should now contain two shortcuts, shown in the screen 4.38.



Screen 4.38

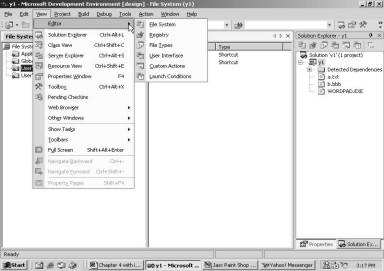

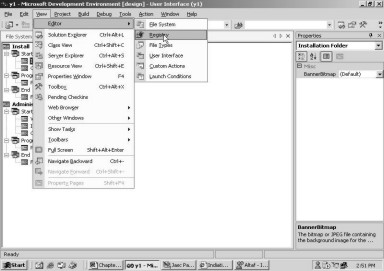

Once this is accomplished, click on the View menu, and then, on the Editor option. This will list down six different editors, which are clearly visible in screen 4.39.



Screen 4.39



We are currently working on the File System editor. Choose the menu option File Types, and you will be greeted by a fresh screen, as gleamed in screen 4.40.



Screen 4.40



You may also notice that there are two tabs on the screen for each of the editors. These tabs facilitate easy switching between the editors, on an as-required basis.

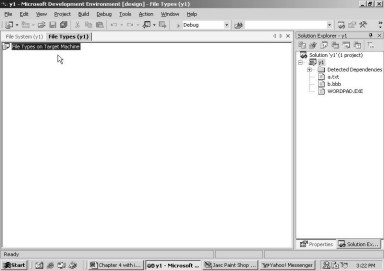

Right clicking on the File Types item, displays only one menu item, i.e. Add File types. This can be seen in the screen 4.41.



Screen 4.41

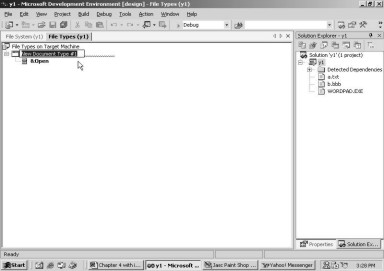

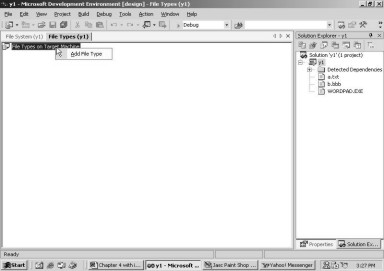

On selecting Add File types, a few more options appear under File Types. This is seen in screen 4.42.

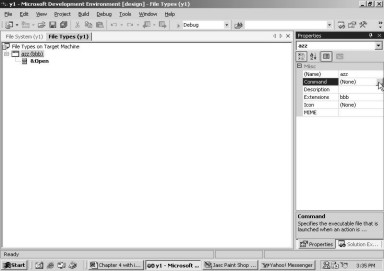

Screen 4.42



You may assign any name to the new file. We have assigned 'azz' as the name. Pressing F4 will exhibit the properties of this type.



Screen 4.43



For the Extensions property, specify the extension of bbb. Now, to associate a program name with the extension bbb, click on the 3 dots i.e. ... , of the command property.

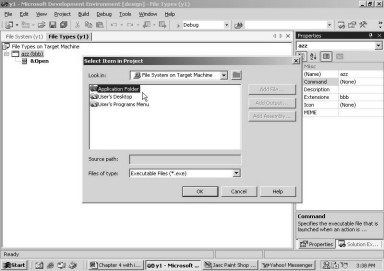

A dialog box, as shown in screen 4.44, crops up with the same three items, as shown in the FileSystem. We are apprized of the fact that, Wordpad.exe is located within the Application folder. Hence, we double click on Application Folder and select Wordpad.exe from it.



Screen 4.44

Screen 4.45

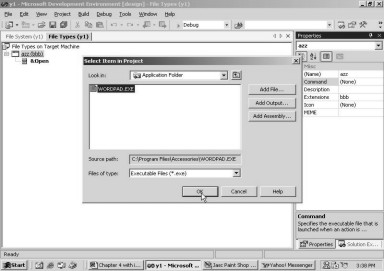

The command property now shows Wordpad.exe. Before proceeding any further, let us determine whether things are taking shape the way we want them to. So, build the project, and then, run the installer.

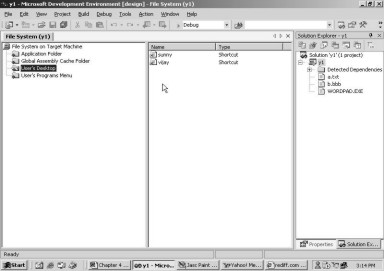

The installation is completed successfully. On the desktop, two shortcuts named 'sunny' and 'vijay' are visible.



Double click on 'sunny'. Lo and behold! WordPad opens up, displaying the file b.bbb.

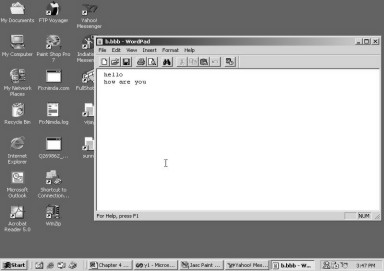

Screen 4.46



The screen 4.46 endorses our statement. Thus, any file with the extension of bbb, has now been associated with Wordpad.exe, without having to write a single line of code.



Let us verify this association. Create a file c.bbb in the root of C drive. Then, create a shortcut to it on the desktop. In order to create a shortcut, right click on the desktop and select Create Shortcut. This shows the Create Shortcut dialog box, wherein, we are asked to enter the name of the file. Obedient as we are, we enter the name c.bbb, which is our newly created file.



Keep clicking on the Next button repeatedly, till you come to the Finish button. On clicking the Finish button, the shortcut named c.bbb will be displayed on the desktop.

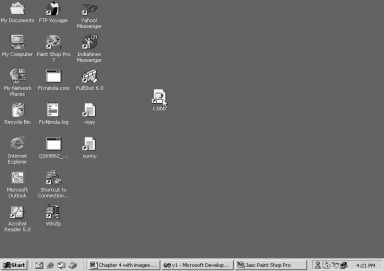

We see the shortcut in screen 4.47. It has an icon identical to that of a file associated with Wordpad. Though it appears distinct from 'sunny', when we click on it, the Wordpad program opens up with the file.



Screen 4.47



Uninstall the project and revert back to the desktop. You will see that the two shortcuts that were created earlier have disappeared. Now, on double clicking c.bbb, a dialog box appears, as shown in screen 4.48.



Screen 4.48

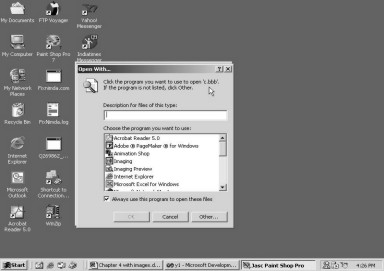

This dialog box turns up because Windows has no clue as to which application to use to open a file with the extension of bbb. This substantiates the fact that the installer, while uninstalling a product, also removes the file association. However, we are clueless as to how it performs this task.



Each time we install some software, we would want to ensure that the user's machine already has a specific version of a software package installed on it. To implement such a condition, we use the editor called Launch Conditions. Click on the View menu, then move the mouse to the last editor named Launch Conditions. This is shown in screen 4.49.



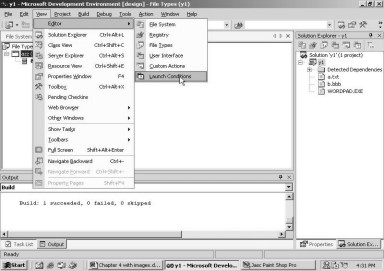

Screen 4.49



Once the editor has been selected, you will arrive at screen 4.50.



Screen 4.50

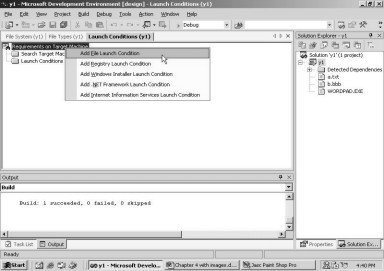

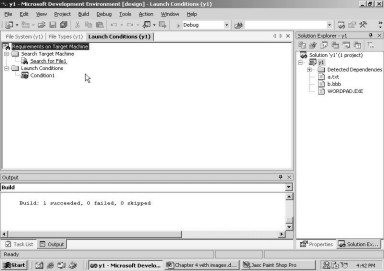

The screen now shows three tabs, amongst which, the Launch Conditions editor tab is active. Here, select 'Requirements for Target Machine', and click the right mouse button. Select the first option named 'Add File Launch Condition'.



Screen 4.51

Screen 4.52



One child node gets added to each of the two parent nodes. Our primary focus will be on the Properties window for the node Search for File1. Select Search for File1 and in the Properties window, modify or initialize the properties, as described in the following text.



Start with the Folder property, and click on the listbox to see a list of directory names. We want to ensure that a specific version or any higher version of Internet Explorer exists on the user's machine. The exe file for Internet Explorer is Iexplore.exe. So, choose the option of [ProgramFilesFolder], since it is located in the sub-directory Internet Explorer, within Program files.



The next property to be modified is called Depth. The Depth property refers to the number of sub-directories under Program files, which should be searched to locate a particular file. In our case, we know that it is more that one directory deep. So we select the depth accordingly. The most important property is the FileName. It has to be assigned the filename, whose version needs to be ascertained. Thus, we set the FileName property to Iexplore.exe.

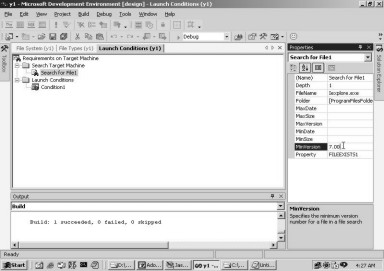

We also desire that the Minimum version of Internet Explorer should be at least 7.00. So, we assign a value of 6.00 to the Minimum property. The property window on your screen should resemble screen 4.53. Now, build and run the application



Screen 4.53



The message box that emerges, does not inspire any confidence in us, since it only reads 'Error Message'. A click on the OK button too, doesn't assist much in determining the cause of the error, since the window only informs us that the installation did not occur due to some problem.



Wouldn't life be much easier, if the error messages were a trifle more meaningful? To ensure this, click on the second child node named Condition1 and then, select the Message property. Here, enter the appropriate error message as follows: 'Wrong Internet Explorer Version Number'.



Now, build the project and install it. Screen 4.54 displays the error message, which we have just entered.



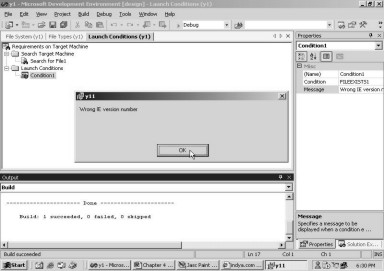

Screen 4.54



The error occured because the installer expects the version number of Internet Explorer to be at least 7.00. Most of us would either be working with Internet Explorer 5.5 or with 6. So, set the Minimum version to 5.00, and everything will work just fine, as before. The value of the Maximum version can also be set, which will guarantee us that the Internet Explorer version falls within a range of the Minimum and Maximum values.



Now, we shall look into customizising the User Interface. Click on the View menu option, and from the Editors option, select User Interface. The screen that is displayed, will look similar to what we have shown in screen 4.55.



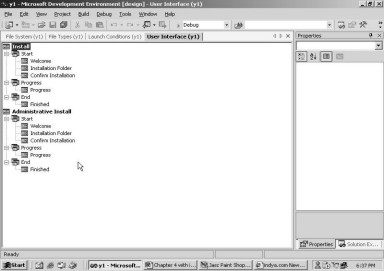

Screen 4.55



It is in this editor that we can customize the User Interface, or the screens that the installer displays. So far, we have always skipped the first screen that is displayed during the installation process, by pressing the Next button. This is because, it does not have much significance for us. So, let us remove it. To do so, select the Welcome node, right click on it, and select the Delete option. This is shown in screen 4.56. You will see the node disappear.



Screen 4.56



Build the project and install it. The Welcome screen is not exhibited any longer. Thus, we can customize every single aspect of the User Interface. After having reviewed the changes, cancel the installation midway, or else, you will have to go through the entire uninstallation procedure.

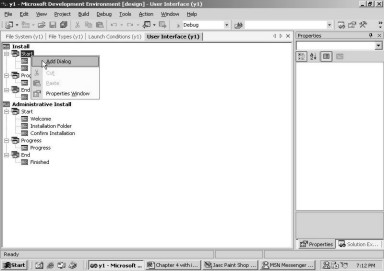

How do we go about adding our own dialog box? This can be done as follows: Select the Start node and then right click on it. Then, choose the menu option of Add Dialog, as shown in screen 4.57.



Screen 4.57

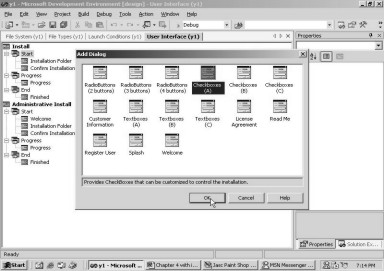

Here, in a dialog box, we are provided with a gargantuan list of the possible dialog pages, which we can add to our User Interface. Now, select CheckBoxes(A), as revealed in 4.58.



Screen 4.58



On doing so, a screen will show up, as displayed in screen 4.59, where a checkbox will be displayed at the bottom. Further, this screen is added in the third position in the list.



Screen 4.59



This sequence of displaying the screens is just not acceptable to us, since we would like our freshly added dialog box to be the first screen to be displayed. Don't sweat the small stuff! Just right click on the node, and select the option of 'Move up', as shown in screen 4.60. Repeat this process once again, to move the dialog box to the top most position.

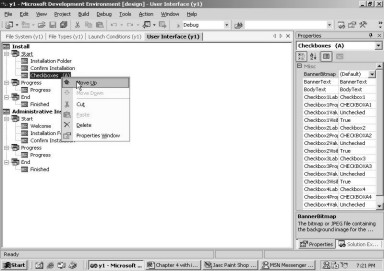

Screen 4.60



Now that the ordering is as per our taste, we need to build and then,install the project. screen 4.61 displays four checkboxes and some text. Clicking on the Next button will take you, yet again, to the dialog pages that you had viewed earlier. We may append as many dialog pages as may tickle our fancy.



Screen 4.61

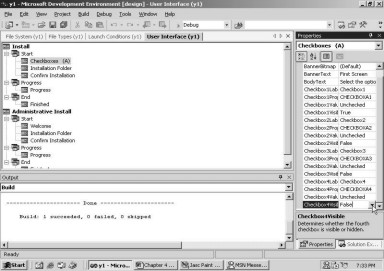

We shall now customize the displayed dialog page. Press the Cancel button, and ensure that the CheckBoxes dialog node is selected.



Firstly, in the Properties window, change the Banner Text to 'First Screen', and in the Body Text, change it to 'Select the options displayed below'.



Then, glide down to the properties of CheckBox2Visibile, CheckBox3Visibile and CheckBox4Visibile. For each of them, click on the drop down listbox and select the value of False. This action of ours, ensures that the last three checkboxes do not get displayed at all. Screen 4.62 shows the Properties window, with the newly assigned values.

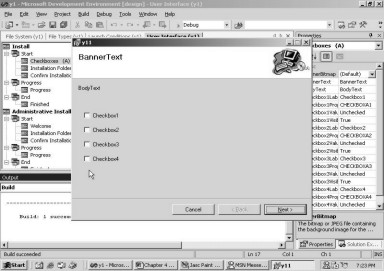

Screen 4.62

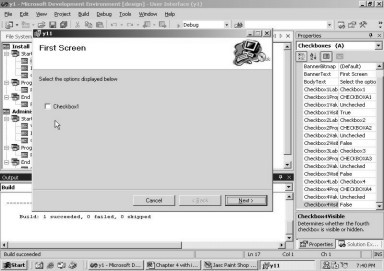

Once the project is built and installed, the screen that we arrive at, flashes the title as 'First Screen'. The Body Text also contains the newly assigned value, and just a single check box is displayed.



Screen 4.63



Now, we want to employ this checkbox to determine whether the file a.txt needs to be copied or not. This will make our installation program much more flexible, as it will empower the user with the option of selecting the files that need to be copied. If the checkbox is selected, the file will get copied, otherwise not. Click on the Cancel button to initiate this modification.

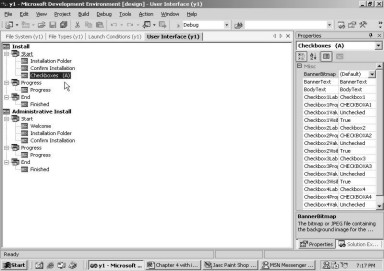

Click on the node Checkboxes (A), and take a look at the Properties window. The property Checkbox1Property will reveal its value as CHECKBOXA1.



Now, click on the first tab named File System, and then, on the Application Folder. Select the file a.txt in the second pane, and for the first property Condition, enter CHECKBOXA1 = 1, Sereen 4.64. Thus, we have made the process of copying a file conditional; in that, the file will be copied only when the checkbox is selected.



Screen 4.64



Build the project and install it. The first screen displays the checkbox, as seen earlier. Leave the checkbox unselected, and complete the installation. It is time to verify whether the condition took effect or not. In the subdirectory y11, within the sonal directory, there are two files visible, instead of three.



Now, uninstall the project and reinstall it. This time, you must ensure that you click on the checkbox and complete the installation. On navigating through the sub-directories, it would become amply evident, that the file a.txt has been copied.



Thus, we have demonstrated a mechanism used very often by an installer program, wherein, a list of options is displayed; and the user has the discretion of selecting the options that he wishes to install on his machine.



There is no necessity for retaining the condition for a.txt anymore. So, delete the condition, and switch back to the User Interface, in order to append a few more dialog boxes. Delete the Checkbox Node and thereafter, right click on the Start Node. As expected, the popup for the Add Dialog is displayed. This time, select the 'Read Me' Dialog.

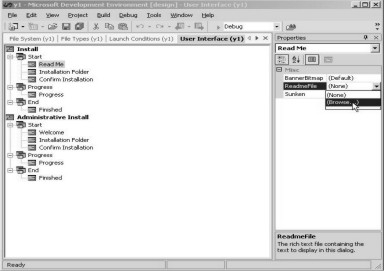

Every installation program furnishes a Readme file, which embodies information for the user to read, either before proceeding with the installation or after completing it. It may contain details about the product, its requirements, the author's name, etc.

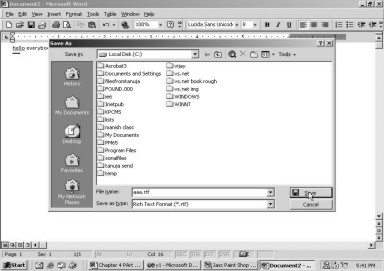

Start the Word application, and in a blank file, enter 'Hello everybody'. Then, to save the file, click on File, Save As and select the file type as 'Rich Text format' or RTF file. The file is named aaa.rtf in the root of C drive. The dialog box displays the options selected in screen 4.65.



Screen 4.65



Close the Word application. Next, for the sake of consistency, right click on the ReadMe node, and move it up two notches, in order to make it the first node. It therefore becomes the first dialog box to be displayed. In the Properties Window, click on the Down Arrow of the property ReadMeFile, and select the Browse option.



Screen 4.66

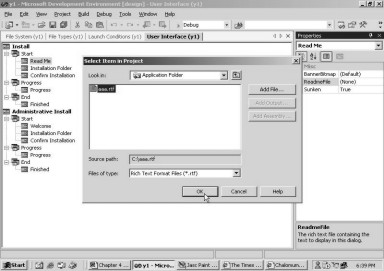

The dialog box of ‘Select Item in Project’  pop’s up. We have bumped into this dialog box before. Therefore, there is no need to replicate the explanation.



If you select the Application Folder, you will obtain a blank screen, since there are no files having the .rtf extension, in our Application Folder. All the files that are required to be copied to the target machine, are lodged in the Application Folder. So far, none of the three files, has an extension of .rtf.  So, click on the button labeled Add File in the dialog box, and choose the file aa.rtf, residing in the root directory.



Screen 4.67



Once this is done, click on OK Button, and monitor the file aa.rtf, being assigned to the ReadMefile property.



Here, we take a short detour, and click on the File System tab. Open the Application Folder. You will notice that this file has not been added to the present list of files.



Build the project and install it, in order to view the outcome of our handiwork. Screen 4.68 displays the Readme file, aaa.rtf, containing the text that we had entered.



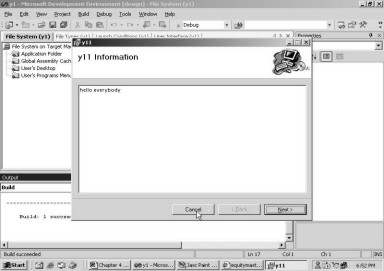

Screen 4.68



Deleting the file from C drive will not result in any errors, since a copy of the file aaa.rtf has been incorporated within the msi file. You may recall, that a similar approach was adopted while the file aa.txt was being copied.



Thus, if you want to subsume a file within the installer program, however, you do not want this file to be copied during the installation, just pursue the methodology stipulated above. In this manner, you can keep a few select files, away from the prying eyes of the users.



Cancel the installation, since we do not intend to proceed any further. As we have finished dealing wiith the ReadMe node, click on the node, and then, press the Delete key to banish it.

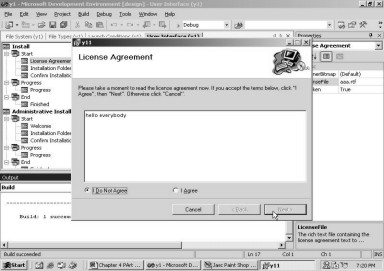

Now, let us handle the License Agreement dialog box. As usual, right click on start, and then, click on 'Add Dialog' to raise-up this dialog box from the list that is displayed. Shift it to the first position, and then, select the drop down listbox of the License File property. This listbox shows the list items that are similar to those of the Readme file. Click on Browse, and then, double click on the Application Folder that is displayed in the dialog box. Select the file aaa.rtf, which is displayed here, and click on OK. Once this is achieved, build and install the project, to gain a sneak preview of the License screen, as shown in 4.69.



Screen 4.69



Under normal circumstances, a valid license agreement, which is drawn up by a lawyer, would have been displayed. It generally encompasses copyright issues, and availability or denial of distribution of the software for commercial purposes. Only lawyers can conjure up the details, and trust me, they get grossly overpaid for it. Two radio buttons are displayed on the screen, of which, the one containing the text "I Do Not Agree", is selected by default. The Next button is grayed out, thereby, preventing the user from proceeding ahead, if he does not conform to the license. Selecting the radio button containing the text "I Agree", will enable or activate the Next button. Verify this feature, and then, cancel the installation, as we are conversant enough with the remaining dialog boxes that are to follow. This dialog box represents a scenario akin to a real life situation, wherein, software that is to be installed, displays a license agreement. The user needs to concur with this agreement, in order to continue with the installation.

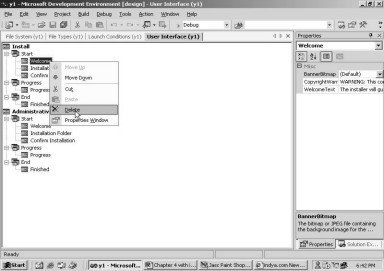

Delete the node, and then, right click on the Start node. Select the option of 'Add a Dialog', to add the dialog called the Splash Dialog Box. As is done routinely, we move it to the top position, and proceed to initialize the few properties that it possesses. Of the two properties that are displayed, we select the 'Splash Bitmap option', and as before, choose the Browse option from the Listbox.



We arrive at the familiar 'Select Item in Project' Dialog Box, where we double click on the Application Folder. Since this folder does not contain any jpg or bmp files, it obviously is empty.



Akin to the procedure adopted for the rtf file, we click on Add file, and then, select the bmp file named "Blue Lace 16.bmp" from the Winnt subdirectory. Click on OK. Then, build and install the project. The screen that is exposed to view, is shown in screen 4.70.





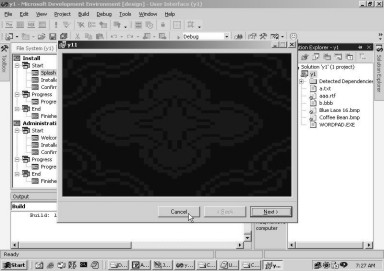

Screen 4.70



A picture stored in the bmp file format, gets displayed when the project is installed.



The only downside of this is, the picture that gets incorporated in the msi file, thereby, increasing the file size considerably. But still it is worth the overheads, since it makes the user experience much richer.



Select the Splash node and delete it. Then, bring-in another dialog called the Radio Buttons (2) dialog box. Elevate it to the top position, and then, build and install.

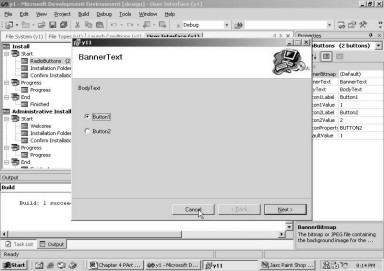

Screen 4.71



In case you forget to move the dialog box to the top position, an error message will be displayed, which notifies that all customized dialogs are to be placed before the Installation dialog box.



The Radio Buttons enable the user to choose from amongst a series of mutually exclusive options. Thus, the user can select only one of the available options, unlike a check box, which allows multiple options to be selected simultaneously. This property of the Radio Button can also be used, to conditionally copy certain files. There are dialog boxes by the dozen, offering a host of radio buttons. As there is no further utility of the radio button dialog box, we shall dispense with it, with a flick of the Delete key.

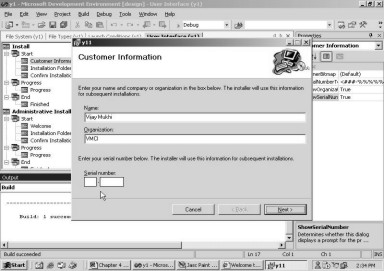

The next in the series of the dialog boxes that we shall explore is, the TextBoxes (A) dialog box. After having moved it to the top of the list, build and install the project.  The screen that springs up, is shown in screen 4.72.

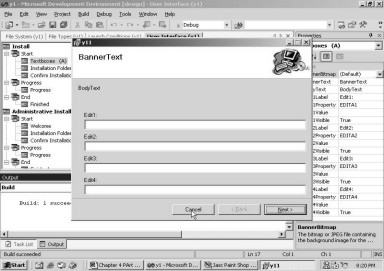

Screen 4.72



Here, four textboxes are displayed for the user to fill up. Our installer can figure out what values are being entered by the users. If we so desire, we may conceal the textboxes, as we had done in the case of the check boxes.



We now select the textbox node, and then, delete it with the help of the Delete key. Now, select the Register User Dialog box and haul it up to the top position, as is generally done.



In the properties window, click on the Banner Bitmap drop down listbox this time, and select Browse. The Select Item in Project dialog box shows up. Double click on the Application Folder. Only the bitmap of "Blue Lace 16.bmp" is displayed. Select it and click on OK. As usual, build and Install.

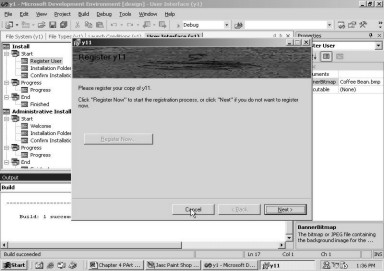

The screen 4.73 displays the selected bitmap at the top of the dialog box. This bitmap comes along with the installer. Hence, it will not be copied to the Application Folder, i.e. the folder specified by us, on the target machine.



Screen 4.73



To ascertain this, note down the file size of the .msi file. In our case, it shows 167 KB. Then, reset the Bitmap property to 'none' and build the project again. The file size reduces to 165 KB. This indubitably proves that the bmp file gets added to the .msi file.



The Register button is disabled. What is the rationale behind retaining a User Registration dialog box, when the Register button is disabled?



While the software is being downloaded from the Internet or is being installed, the Software Company that developed the software, may want the user to register the product with them. This process normally is optional, but is used as bait. If a user registers the product, he will be notified about free upgrades by e-mail. The registration process is capable of doing numerous other things, but the installer couldn't care less about them.



The property named Executable has to be initialized, so as to enable this button. So, select the Browse option, which would display the Select Item in the project Dialog box. As always, click on the Application Folder and select Wordpad, since this is the only exe file that is currently accessible.



Under normal circumstances, the programmer writes a program, which knows how to register the user information with the company. That is it!  Now click on OK, and then, build and install. The Register button is alive and kicking! On clicking this button, Wordpad opens up. This is reflected in screens 4.74 and 4.75.

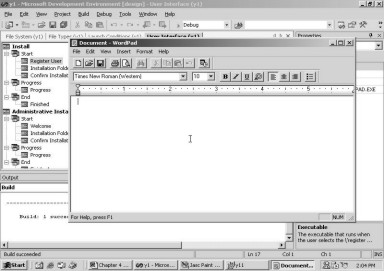

Screen 4.74

Screen 4.75

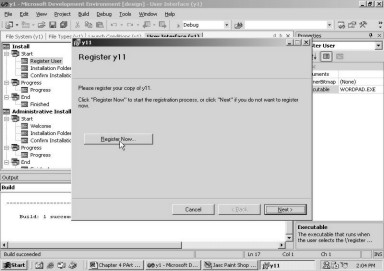

If, we click on the Next button, without quitting out of Wordpad, the installer waits indefinitely. The installer refuses to proceed any further, until the program concludes. Therefore, exit from Wordpad and click on the Next button, to proceed to the next screen. Thereafter, click on the Cancel button, since we lack inclination to advance any further with the installation.



Let us now focus upon Arguments, which is the first property of this dialog node. Enter the value of C:\a.txt. Then, build and install the project. When you click on the Register button, Wordpad gets executed, with the file a.txt opened in it. Thus, arguments can be passed to the program, which then exploits the parameters to the optimum.  Thus, if we insert the text Wordpad, followed by a file name as a parameter, it executes, with the file displayed in it.



Now that we are through with the Register node, delete it and introduce the Customer Information dialog box. Move the node to the top. Then, build and install the project. Screen 4.76 now shows the dialog box with two textboxes; one containing the user name, and the other including the company name. This is similar to what was entered, while the Visual Studio.Net was being installed.



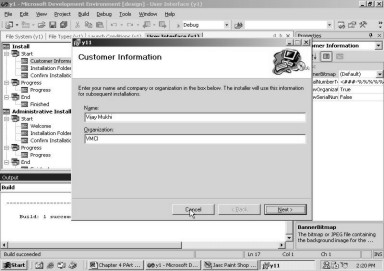

Screen 4.76



At install time, most products ask for the name of the user and the company. At times, it also requests the user to enter a serial number. The screen 4.76 does not show any serial number at present.



However, if we change the value assigned to the property ShowSerialNumber to True, the Serial Number Box gets displayed. Note that the value assigned to the property SerialNumberTemplate, is as follows: <###-%%%%%%%>. Build the project and install it.



Screen 4.77

Screen 4.78



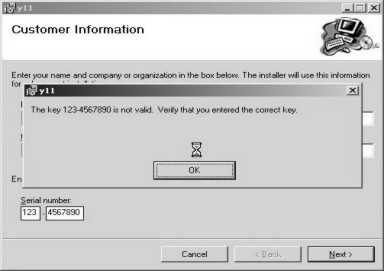

The serial number box has two boxes, separated by a hyphen. If we enter the digits 123-4567890, and click on the Next button, an error message box is displayed, as is visible in screen 4.78. Unless a valid serial number is entered, the user is denied permission to proceed any further, thereby, aborting the installation of the software.



In the template, the # symbol expects a digit. Thus, the 3 # symbols expect the user to enter 3 digits. The % symbol also represents a digit. Thus, 7 more digits are to be granted next. The numbers entered in the positions corresponding to the # symbol are ignored. However, the numbers entered for the positions represented by the % sign, are added up, and then, divided by 7. Provided that the remainder that is obtained is zero, the serial number is considered to be valid.



Entering the number 1 seven times, will result in a remainder of zero. Hence, it is considered to be a valid serial number. Keep it in mind that the first 3 digits are ignored in the calculation. Further, the 3-7 combination is not mandatory. You may modify it to suit your requirement.



Now that we have become familiar with the Customer node, select it and delete it.



We have garnered adequate knowledge about customizing the User Interface editor. So, let us now change track and proceed to the next editor called the Registry. Click on the View menu, and move the mouse to the Editor menu option.



Screen 4.79



The screen that shows up, is displayed in screen 4.80. Let us spend a little time appreciating and unraveling the System Registry and the screen displayed below.



Screen 4.80



Let us consider a practical example of Visual Studio.Net, to understand the concept better. Each time we start the product, we arrive at a start page, which displays the names of the last four projects that we have worked with. How does Visual Studio.Net remember the names of these projects? The only likelihood is that, Visual Studio.Net saves the names of the last four projects on the disk. To be more precise, it stores it in the Registry.



The Registry is a hidden file, which stores information in the form of name-value pairs, under different keys or headings. There must be only one hidden file, which stores relevant information about various different applications. Consequently, every single application does not create its own hidden file. This results in optimization of the time spent on data retrieval. A program called Regedit knows how to display and edit this file.



Therefore, all programs in our day, have standardized the procedure of storing all their dynamic data in the Registry. The keys, along with the name-value pairs, are inserted or modified in the Registry, during the installation of the product.



As we are in the midst of the setup and installation process, we are in no position to disregard the Registry at any cost. So, how do we create a key and add it to the Registry at the time of installation?

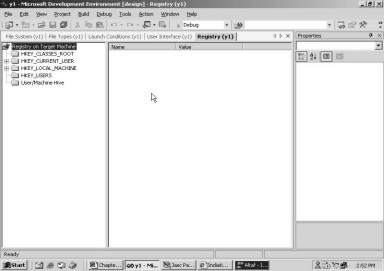

Since the Registry stores a multitude of name-value pairs, we need to organize them under various headings, such as, HKEY_CLASSES_ROOT, HKEY_LOCAL_MACHINE, etc. Click on the plus sign of HKEY_LOCAL_MACHINE. You will see the word Software, with a plus sign below it. Select Software and right click on it, to view the menu. Select New from the Menu and then select Key from the popup menu.



Screen 4.81

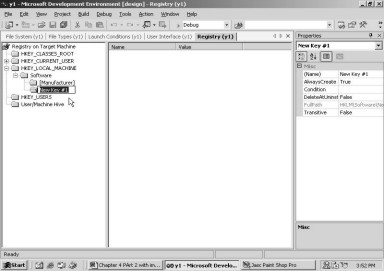

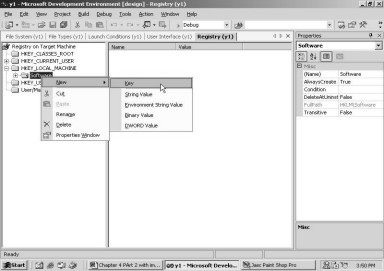

This will result in the creation of a new key under the Software key, as shown in the screen  4.82.

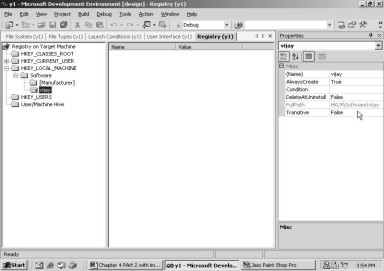

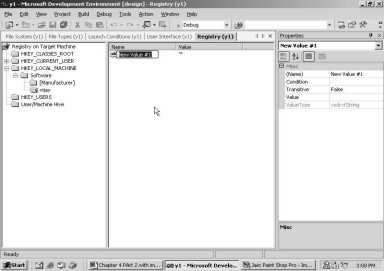

Screen 4.82

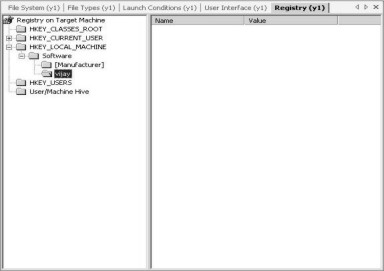

Replace the selected text with 'vijay', and then, view the properties window. There are very few properties displayed for 'vijay'.



Screen 4.83

Screen 4.84

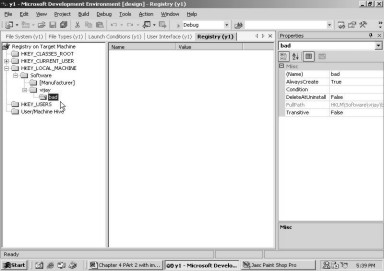

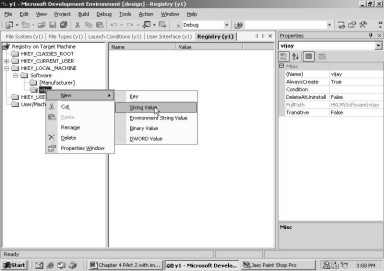

Right click on 'vijay' in the Registry editor. The same menu that was displayed while adding the key, is displayed here. We select the option of 'string value'.



Screen 4.85

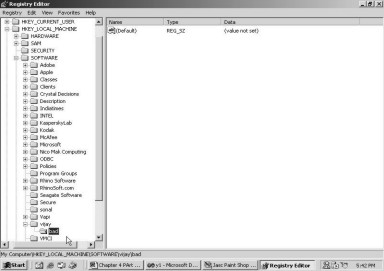

Once this is done, an entry is made in the second pane. Enter 'Mukhi' as the new name, and thereafter, assign the value of 'sonal' to the Value property, in the Properties Window.



Screen 4.86

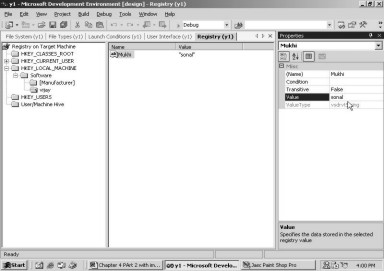

Screen 4.87



What we have accomplished so far, is the creation of a key called 'vijay', under the Software key, and have assigned it a sub-key called 'Mukhi', having a value of 'sonal'.

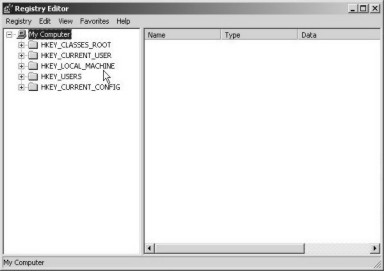

Using the Start menu (Ctrl+Esc), run a program called Regedit. The registry displayed by this program, is shown in screen 4.88.



Screen 4.88

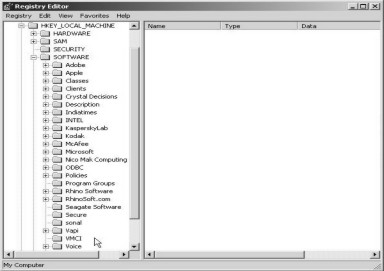

Click on the plus sign of HKEY_LOCAL_MACHINE, and then, click on the plus sign of Software. You may observe that there are no traces of the key 'vijay' under the key 'Software'.



Screen 4.89

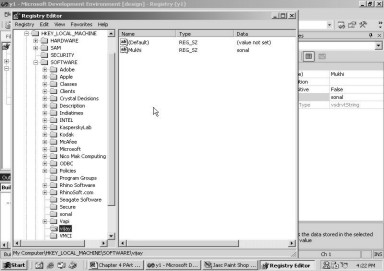

Close the registry. Then, build and install the project completely. Once this is executed, open the Registry using regedit, and scroll down the list of all the keys under the Software key, which itself is located under HKEY_LOCAL_MACHINE. You would be delighted to discover the newly introduced key named 'vijay', nestled comfortably. It has the name 'Mukhi', with the value of 'sonal' contained in it.



Screen 4.90



Thus, with the help of the procedure outlined above, you can add as many keys as you want, to the Registry. When you uninstall the project, you will notice that this key also disappears. Back in the Registry editor, right click on 'vijay' and add a new Key. Name the key as 'bad'.  Screen 4.91 flaunts this new development.



Screen 4.91



Build and install the project and then, run the Regedit program. In case the Registry is open, you can simply click on View - Refresh.



Screen 4.92



We were totally unaware of the fact that, adding keys to the Registry could be so straightforward. While installing any product in real-life, the main key under Software is, the name of the Company that has created the product. This key contains all the other keys required by the product. Each application creates hundreds of keys. Therefore, the Registry grows into a colossal file.



Uninstall the project, so that we can complete our task of exploring the last of the six editors, named Custom Action. As before, click on the View - Editors - Custom Actions. Screen 4.93 displays the window that appears.

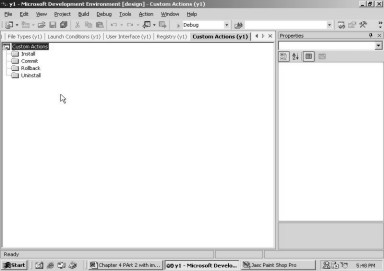

Screen 4.93



The four nodes relate to the actions that need to be performed during the following four processes:

•   Install

•   Uninstall

•   Commit, i.e. when all our files are finally written

•   Rollback, i.e. when an interruption takes place, owing to some error.



We may want a specific program to be executed, when either of the above four actions takes place.

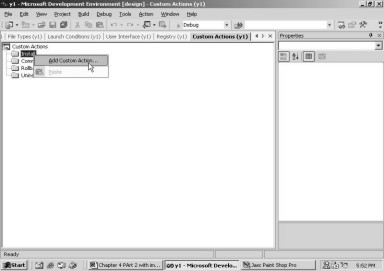

We commence with the first node named Install. Right click on it and view the options that come into view.



Screen 4.94

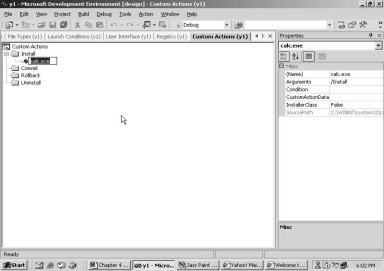

A click on the Add Custom Action, will aid in introducing a new action, which is to be performed at the time of project installation. The familiar Select Item in Project dialog box, is displayed with the same options. As before, double click on the Application folder, and then, click on the Add file dialog box. Navigate through the sub-directory of Winnt and System32, to locate a file called calc.exe. Select this file, so that it gets appended to the list containing Wordpad.exe. Click on the OK button to move out of the dialog box.



Screen 4.95



Screen 4.95 clearly illustrates the fact that, calc.exe will be executed when the project installs. In order to verify this, build and install the project. After clicking twice on the Next button, watch the installation take place. Suddenly, out of the clear blue sky, the calculator (calc.exe) emerges. The installer freezes while the Calculator is active. This is evident from the fact, that the Next button is disabled.

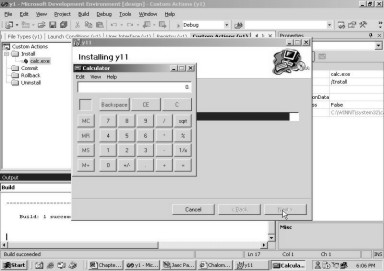

Screen 4.96



When you close the calculator, the installation will reach its logical end. Thus, any custom action associated with the Install node, will get executed before the progress bar reaches its end-point.



The action that is to be performed at the time of installation, depends entirely on us. For the same reason, the framework offers some parameters too. Uninstall the project before proceeding any further.



Now, right click on the Commit node, and just as before, choose the Add Custom Action option. Once you click on the Application Folder in the Select Item in Project dialog box, choose the wordpad.exe file.



Click on OK, and you will observe that an action has been added to the Commit node.

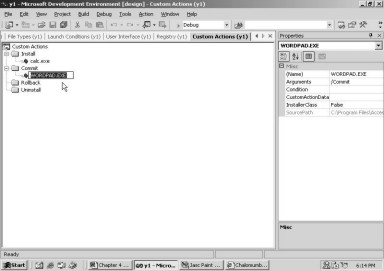

Screen 4.97

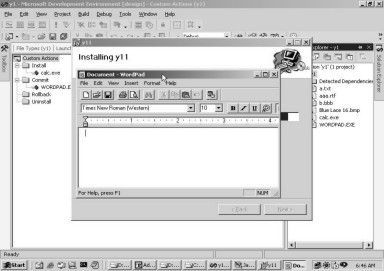

After having built the project, install it. You will first notice the Calculator on the screen. The moment you close this program, the word processor named Wordpad starts execution. This is shown in screen 4.98.



Screen 4.98



Thus, the Commit action gets called, after the installation of all the files has taken place. Unless we exit from the Wordpad application, the last dialog box does not get displayed.

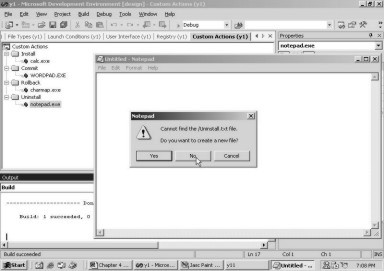

Now, opt for the Rollback node to add a custom action. Select the file called charmap.exe, as the file to be executed. We shall avoid harping upon the oft-repeated steps, which would have been drilled into your memory by now.



Build and install the project. The first stopover will be at the Calculator. Instead of closing the Calculator, click on the Cancel button, to abort the installation.  This will result in a call for a confirmation.



Select 'Yes', as we are very certain that we want to cancel the installation. Nothing heart-stirring occurs, since the calculator is still on. Close the calculator. As soon as the calculator program terminates, the Character Map window springs-up. This indicates that the Rollback action is being executed.



Screen 4.99

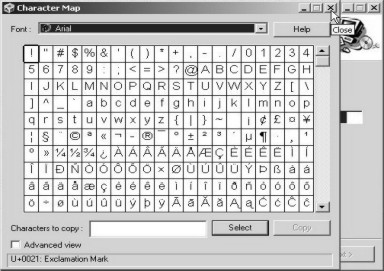

Close the Character Map window. At this stage, you will be gently notified that the installation has been cancelled.



Uninstall the project, before venturing out to deal with the last node. Right click on the Uninstall node, to add notepad.exe to it. Build and install the project completely. There is no trace of the notepad anywhere, since it was the installation process that had been carried out. Now, uninstall the project. After some bustle, you will see the Notepad application displayed on your screen. When the message box comes up, click on 'No', as shown in screen 4.100 and close Notepad.

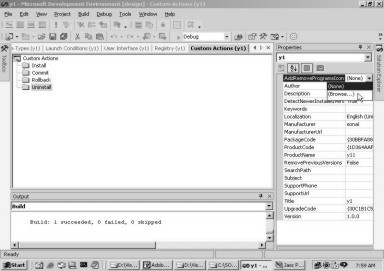

Screen 4.100



Since we are well versed with the Custom Actions, let us move ahead to something more pictorial. However, prior to that, delete all the actions associated with the nodes, in order that they don't trammel our understanding of the other features. This can be done simply by right clicking on the executable, and deleting it.



While a product is being installed, the Add/Remove Program of the Control Program tells us whether the program has been registered with the Windows database or not. The Program shown in the Add/Remove dialog box, always has an icon associated with itself. Now, how is it possible for us to change that icon?



In the Solution Explorer, select y1. And then, in order to select the Browse option, click on the drop down arrow associated with the property of AddRemoveProgramIcon, in the Properties Window. This is clearly depicted in screen 4.101.



Screen 4.101

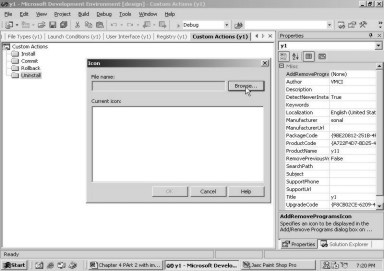

The dialog box that crops up, reveals another button labeled Browse. Click on it, to arrive at the familiar 'Select Item' in Project dialog box.



Screen 4.102

Screen 4.103



As always, double click on the Application Folder, and then, click on the Add File button. This time around, we choose the Windows subdirectory, and subsequent to that, we select the icon file named winupd.ico. The icon file you select, is of no real consequence. You just need to select one of them. Click on OK and come back to the Icon dialog box, as shown in screen 4.103. At this stage, we can actually preview what the icon looks like, before we finally commit ourselves to it. Now, click on OK.



Switch to the Launch Conditions tab and delete the two nodes named 'Search for File' and 'Launch Conditions'. The lesser the overhead we carry, the better it would be for us. Build and install the product.

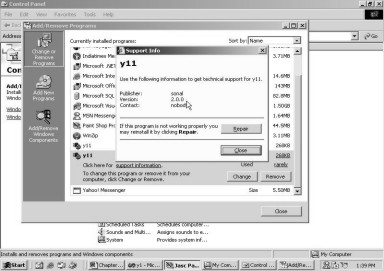

Now, open up the Add/Remove Dialog box in the Control Panel, to discern the outcome of our modification. Y1 is displayed along with the icon that we selected, as shown in screen 4.104. The icon file becomes a part and parcel of the installer and gets copied onto the y11 sub-directory. Thus, we can customize the installer comprehensively, as per our requirement.



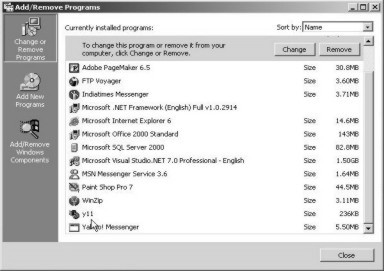

Screen 4.104



Select the first tab of File System, and then, right click on the Application Folder. This time, select Folder instead of File, with the New option. Rename the folder as zzz, and ensure that your screen corresponds with screen 4.105.



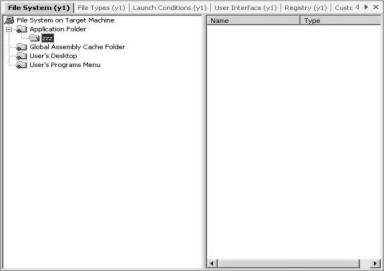

Screen 4.105



We have deliberately not added any files to this folder. Note that the property AlwaysCreate has the default value as False. This implies that, if the folder is empty, it will not be created. So, let us authenticate this.



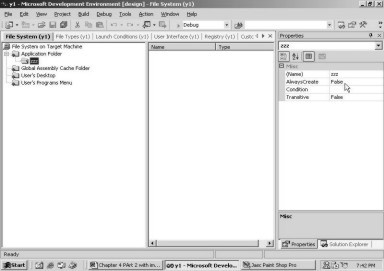

Screen 4.106



Build and install the project totally. Once done, navigate to the y11 subdirectory in 'sonal' under Program Files. There is no sign of 'zzz'. Uninstall the project and change the value of AlwaysCreate from False to True. On doing so, when the newly built project is installed, the sub-directory of zzz will be created. Uninstall the project, since we have thoroughly understood this property. We have encountered AlwaysCreate property, with many of the editors, while creating new resources. It has always been assigned the value of False.

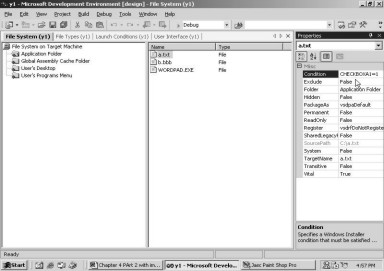

Select the Application tab once again, and choose the file a.txt. In the properties window, assign the value VersionNT <= 4.00 to the property of Condition.



The term VersionNT is well understood by the Windows Installer. It signifies the version of the operating system, which the installer is being run on. Please note that, it does not represent the version of the operating system on which, the application is being built. The condition states that the file a.txt is to be copied on the target machine, only if the version of the operating system on the target machine is NT 4.0 or less.



Our application is built on Windows 2000 or NT 5.0, since this is the OS that we are working on. Build and install the project. Then, go to directory y11 to verify if the file a.txt has been copied. You won't find any trace of it. However, if the installer had been executed on NT 4.0, the file would surely have been copied. Change the condition to VersionNT >= 5.00. Now, the file will definitely be present in the concerned subdirectory. There are a large number of such terms that the Windows Installer understands. The help file or the documentation is of great assistance to establish the utility of such terms.



Select a.txt again and delete the condition assigned to it. Then, select the zzz folder. Place the same condition of VersionNT >= 5.00, in the Condition property for the folder. Then, build and install the project. The folder zzz is not visible in y11. This happens because, in spite of the condition resulting in a True value, the folder is empty. Thus, it does not get created.



Change the AlwaysCreate property to True, and then, build and install the project. Since the property is now assigned the value of True, the folder zzz gets created. Now, change the Condition property to VersionNT <= 4. Regardless of the fact that the condition is False, the folder zzz gets created, since the value of the AlwaysCreate property overrides the Condition.



Create a file named a.html in the root, with any content that you desire. Now, right click on the zzz folder, and select New - File to assign the file a.html to it.  We want this file to be copied into the zzz sub-directory. Now, choose the folder zzz and change the value of the AlwaysCreate property to False. Then, build and install the project. On moving down to the y11 folder, we realize that folder zzz is not visible, since the Condition property is False.



Thus, to recapitulate:

•   If the AlwaysCreate property is True, the Condition does not get evaluated.

•   If the AlwaysCreate property is False, the Condition property gets evaluated.



This is the reason why the Files do not possess the AlwaysCreate property, since it nullifies the Condition property.



We shall now converge all our attention towards discerning all the properties of Shortcuts on the Desktop. Select Users Desktop, subsequent to which, select the Shortcut named 'vijay'. In the Properties menu, assign the value of 'ddd' to the Arguments property, and allocate the value of 'eee' to the property of Description.



The ShowCmd property determines the display pattern, when the program is summoned by the Shortcut. The listbox depicts three options, viz. Normal, Minimized and Maximized. Choose Maximized or vsdscMaximized. In the WorkingFolder property, click on the button with the 3 dots(…). As expected, a dialog box titled 'Select Folder', comes up. This is illustrated in screen 4.107. Select the option of Users Program Menu.

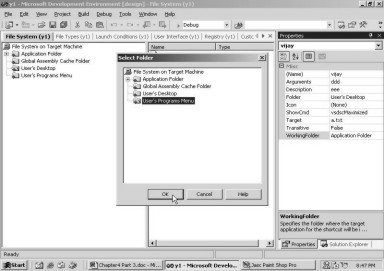

Screen 4.107

Screen 4.108



Build and install. Once the installation has been completed, move to the desktop and right click on the Shortcut 'vijay'. The properties displayed by the Shortcut, are presented to the view in screen 4.108. The value assigned to WorkingFolder, is flashed in the textbox with the label Start in:. The label Run: contains the value of Maximized, since the property of ShowCmd was assigned this value. Comment receives the value from the Description property.

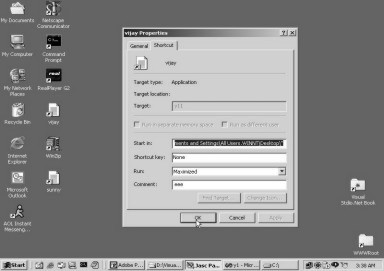

Click on OK. Following this, double click on the Shortcut. Notepad gets executed, and occupies the entire space on the desktop. It displays the file a.txt in it. A Shortcut has a varied set of properties, as compared to an actual file.



Uninstall the project, and select the file a.txt in the Application folder. Thereafter, in the Properties window, select the value of True for the Hidden property. Now, build and install the project, and go to the subdirectory y11 in the subdirectory 'sonal'. The 'dir' command, which is employed to display a list of files in the current directory, does not display the file a.txt. But 'dir /A' displays all files, because the /A option puts all the hidden files also on display. Thus, the hidden file a.txt, is also presented to the view.



Uninstall and undo the change, by reassigning the value of False to the Hidden property. Then, move over to the Permanent property. Change its value from the default value of False to True. Then, build and install the project. After you have ascertained that the file a.txt has been copied to the y11 folder, uninstall the project. Once the installer concludes uninstalling the Project, revert to Program Files. You will see the 'sonal' subdirectory still existing alongside the folder y11. The file a.txt is also housed there. However, all the other files have been packed off.



Thus, the Permanent property should be handled with utmost care, since it ensures that the file does not get deleted at the time of uninstallation. This may not be a very prudent step to be taken, but at times, it is crucial to ensure that the file does not get deleted, since there may be other programs that would also require this file. Change back the value of the Permanent property to False.



The Read-Only property, like the Hidden property, alters the attribute of the file. Assigning it a value of True, will simply makes the file 'read-only', on the target machine. Now, install and build the project. Go to the sub-directory y11, right click on a.txt, and select Properties.



Screen 4.109



The attribute assigned to the file, has the Read-only checkbox selected. Therefore, you can neither write to this file, nor can you delete it.



When you select a.txt, and zoom onto the Properties window, the SourcePath displays c:\a.txt as grayed out. There is just no way of modifying this value. This property is considered to be 'read-only', as you cannot write to it.



Uninstall the project and re-allocate the value of False to the Read-only property.



We skip the next two properties, and assign the value of aa.txt to the TargetName property. Thus, the file a.txt will be copied as aa.txt, on the Target machine. This is for the reason that, while building the project or creating the .msi file, the file name is stored as aa.txt, instead of a.txt.



Now, open the Solution Explorer window and click on the project named y1. Then, switch to the Properties Window, to view the properties assigned to the Solution. Technically speaking, properties are attached to the Project, and not to the Solution. Change the value of the property Author to 'nobody', from its default value of 'VMCI'. Build the project, and then, open the folder y1 from c:\vijay, in the Windows Explorer. Within Debug, right click on y1.msi and choose Properties. Now, in order to view the properties related to the file, select the Summary Tab. One of the properties displayed here, will be Author, which has a value of 'nobody'. Most of the properties in the Solution Property Box are reflected here, and are employed for documentation purposes only.



We now shift our focus to another aspect called Versioning, in the Windows Installer world. But prior to that, we will recount the installation procedure yet again. Any project has to be built first, and then installed. In our case, the folder y11 is visible in the 'sonal' subdirectory under Program Files. If we attempt to install the project once again, it is the existing project that should be uninstalled first, since it is mindful of the fact, that the product has already been installed. After that, the product is re-installed. During the  un-installation, all files and subdirectories get deleted.



In order to understand versioning, install the current project. Then, click on the Solution y1 in the framework, and change the property Version in the Properties window to 2.0.0. The default value of version is shown as 1.0.0. On doing so, a message box is displayed, as seen in screen 4.110.



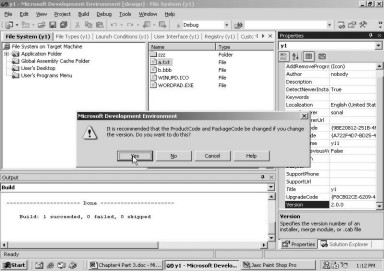

Screen 4.110



This message box recommends a change in the values of the two properties named, ProductCode and PackageCode. Make a note of the values of the above properties. Following this, click on 'yes', and watch the installer update the values of these properties.



The ProductCode is a series of hex numbers, in the format of {CB0B5EF4-D884-4376-9D42-620B99FEB468}. This number is called a GUID, or a Globally Unique IDentifier. A GUID is 16 bytes long. Thus, it can hold a value, which is as large as 2^128.  So, you can very well visualize, how long-drawn-out would this number be. Each time the Version is changed, the installer assigns a new number or GUID to represent it.



Now, when we run the installer once again after building it, notice that the installer does not eliminate the earlier installation, and thus, the folder y11 in ‘sonal’, is still available.  Now, change the name of the folder in the first screen, from Y11 to y22. This would result in two folders, viz. y11 and y22.



The installer will uninstall only the files related to a particular version. The folder y11 has files with the installer version 1.0.0, while y22 has files of version 2.0.0. Click on the menu options Start - Settings - Control Panel - Add Remove Programs. At the bottom, the two copies of y11 are visible. Clicking on Support Information, displays the version number of each of them.



Screen 4.111



The only way to uninstall the project with the Version number 1.0.0 is, by clicking on the Remove option in the Add Remove dialog box.



Select the property package code after choosing the Solution, and click on the button with the 3 dots.



Screen 4.112

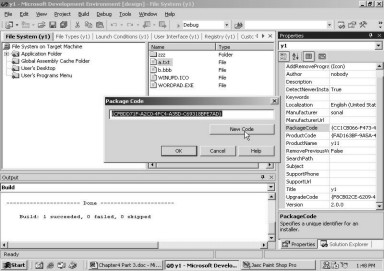

In the dialog box, appears the GUID, which is currently assigned to the PackageCode. Each time that the New Code button is hit, the GUID in the textbox changes. GUID is a unique random number generated by the system, which depends upon some unique feature of your computer and the current time displayed in the computer clock. You are surely asking for trouble if you create the GUID manually, as it may clash with some GUID, somewhere else in the world.



In the Solution Explorer, select y1 and right click on it, to see the last menu option called Properties. The Properties window of the Solution Explorer is distinct from the Properties window that we have seen earlier. It can really get baffling at times!

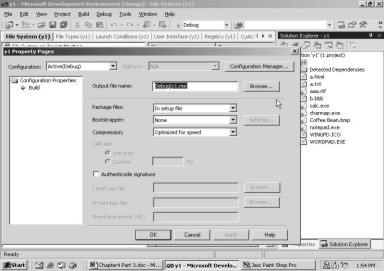

Screen 4.113



The first option is the name of the output file, which will be generated. You can input the name of your choice, if you are not too delighted about the current one. The listbox for the Package Files option consists of three options. The default option is ‘In setup file’; as a result of which, all files get added to a single setup file. Select the option of 'loose compressed files', and notice that the file size shrinks considerably. It is so, because the files like a.txt, do not get added to the msi file. Thus, we enjoy the option of precluding files from being copied or packaged into the msi file.



In the eventuality of one of the requisite files (such as b.bbb), getting deleted from c:\vijay\y1\debug, the installer will notify this to you, in the form of a message box.



Change the Package Files options to 'In Cabinet Files'. Click on OK, and then, build the project. Now, if you venture into the debug sub-directory, you would notice a massive reduction in the size of the cab file, as compared to the size of y1.msi. In any installation, files can be placed either in a cab file, or in an msi file. The file can either contain all the files or may place the dependencies separately. Bear it in mind that, the Debug directory gets cleaned out, i.e. all its files get deleted, each time we build the project. Restore the default value of 'In setup file', for the Package file option.



The Bootstrapper also displays a drop down listbox, with three options. The default option is None. Amend it to Windows Installer Bootstrapper. Click on OK and build the project. Now, when you move into the Debug folder, you are sure to notice that, apart from the regular y1.msi, four new files have been created .Of these four files, 3 are exe files and one is an ini file. The file names are as follows:

•   Setup.Ini

•   InstMsiW.Exe

•   Setup.Exe

•   InstMsiA.Exe



If the version of the Windows Installer and that of the machine on which we are installing the product, are not in consonance with each other, the installer summons these three executable files for assistance and then, upgrades the installer. Thus, the msi file executes or the installation takes place, only after the installer has been upgraded. Windows XP comes with the Windows Installer version 1.5.



Now, reset the Bootstrapper option to None, and build the project. Move down to the Debug folder in y1 and note the file size of the .msi file. In our case, it is 179 KB. Having done this, choose 'Optimize for size' for the Compression option. Click on OK, and then Build . The size of our msi file has condensed to 171 KB. Now, from the listbox for Compression, select 'None', and click on OK to build. The size of the msi file increases to a whopping 312 KB.



Thus, the programmer is capable of controlling the type of compression, which is to be used for the msi file. If speed is to be accorded prime importance, then the msi file does become a little too enormous, but it installs faster. However, the size needs to be optimized, in order to be reduced; but all at the expense of the speed of installation. There exists a tradeoff between the two compression options. The 'None' option will result in the files being copied, regardless of the speed of installation or the size of file.



Let us now consider a complete project, and convert it into an installable file. Save all the files and close the window. Now, to create a new Project, click on 'File - New - Project'. In the first pane, choose Visual C# Project, while in the second pane, select Windows Application. Name the project y2 in c:\vijay subdirectory, and click on OK. Make sure that the Solution Explorer and the Toolbox are visible. Once the framework is set, initiate a button into the form. The solution named y2, has only one project in it. But, hold your horses! You are warned against building the project at this stage.



We now wish to usher- in yet another project. So, select the option of File, Add Project and New Project, as shown in screen 4.114.



Screen 4.114



The dialog box that surfaces, is the familiar Add New Project dialog box, wherein, we select 'Setup and Deployment projects' in the first pane, and 'Setup Project' in the second pane. This project is named as y3. The File System editor opens up, and the Solution Explorer displays both the projects under one Solution. This is revealed in screen 4.115.



Screen 4.115



In this manner, the stage is set for the Setup Project y3 to install the Application y2. So, right click on the Application Folder and select Add, with Project Output. The screen that shows up, is called the 'Add Project Output Group'.



The listbox, as seen in screen 4.116, offers a list of Windows Application projects. Since y2 is the only project in the Solution, it is selected by default.



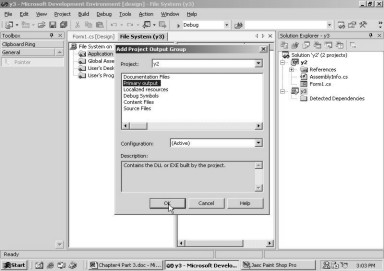

Screen 4.116



The larger listbox is more significant, since it asks for the files that are to be made a part of the installer. Since we are interested in the output files generated by the project (i.e. y2.exe), we select 'Primary Output' and click on OK.

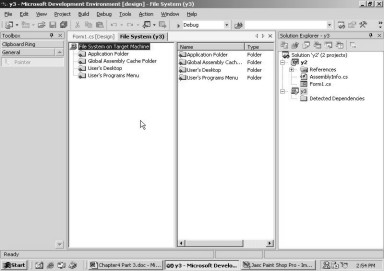

The display changes in both, the File System Editor and the Solution Explorer.



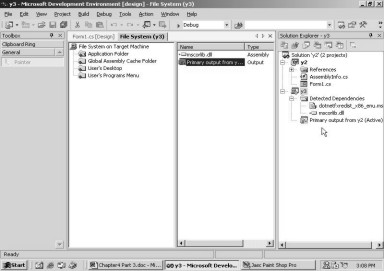

Screen 4.117



Now, we are ready to build the project. The output window projects the Build process for both, the projects y2 and y3. It takes considerable time for the Build to reach completion. Also, the folder c:\vijay\y3\debug, displays the size of the y3.msi to be approximately 16 MB.



Keeping our fingers crossed, we right click on y3, and then, click on Install. Next, we click on the Next button of the first screen. In the second screen, we retain the path where the files are to be installed as C:\ProgramFiles\VMCI\y3\. When we click on the Next button, the files use up considerable time to be installed. After completion of the installation, we move with trepidation to the y3 folder under VMCI, to verify whether the files have been installed or not.  The folder informs us that 16 files have been copied, and that the total size is over 2.6 MB. The size of the file y2.exe is only 5 KB. On running y2 from the dos box, a window containing a simple button is displayed.



Thus, we have been able to selectively install the executable file from our project, onto another machine. The million-dollar question here is, 'How can the size of the msi file be reduced?' In order to achieve this, right click on the file named dotnetfxredist_x86_enu.msm, in the Solution Explorer within project y3. Out of the two options displayed, choose Exclude. Almost instantly, a mark appears on the file name. Screens 4.118 and 4.119 display this option.

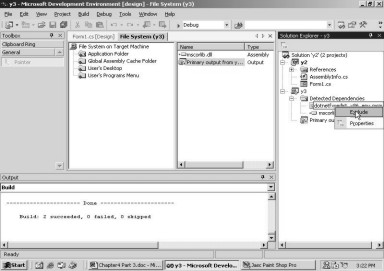

Screen 4.118

Screen 4.119



The mark insinuates that, this file has been marked for exclusion from the final msi file. The execution is much faster now. Also, the final size of the msi file is only 1.23 MB. Thus, it is amazing that, by merely omitting the msm file, the size has reduced by a whopping 90%. The installation culminates much faster. However, the number of files that get copied to the y3 folder, remains the same.

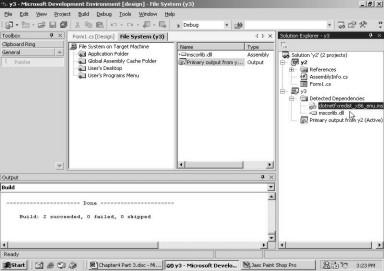

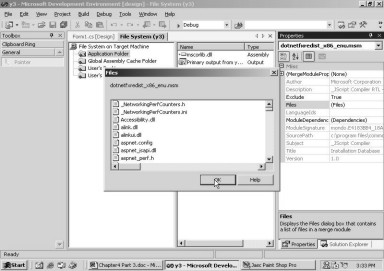

Let us now unfurl the mystery around the msm file, by getting to the bottom of it. This file is located at c:\Program Files\common files\merge modules\dotnetfxredist_x86_enu.msm. It is 14MB large. This file contains the .NET runtime, which requires to be installed on the target machine, to facilitate smooth execution of our programs. Since our machine already has the .NET runtime installed on it, it makes no difference whether we include this file in the project or not. The .NET runtime will be in-built, in all the future versions of the Windows operating system.



In the Solution Explorer, right click on the msm file, and select properties. Select the property of Files, and click on the button with the 3 dots. The dialog box that pops up, is seen in screen 4.120. It displays the contents of the msm file, which is merely a compilation of innumerable other files.



Screen 4.120



Close the toolbox and the property window, if they are still open. After that, select Primary Output in the Solution Explorer, and delete it with the help of the Delete key. Deletion of the Primary Output, also results in the deletion of the mscorlib.dll file. A dll file merely contains code, and its file format is almost indistinguishable from that of an exe file.



Now, right click on the Application Folder and choose Add, to add the Project Output. In the Add Project Output Group dialog box, select the last option named Source Files. When you build this project, the file size of y3.msi will be considerably small, consisting approximately of 92160 bytes. On running the installer, the y3 subdirectory reveals only the four source files, which constitute the project. Thus, we can choose between copying either the executable generated by the project, or the source files, into the msi file.



We had touched upon the Cabinet file in the past, while we were talking about Solution properties. Now, let us create a Cab file. A file with a .cab extension is called a Cabinet file. It is used to store a large number of files in it, which can subsequently be expanded on the target machine. These files are also capable of being downloaded from the Internet.



Save all the files, and close all windows to start afresh. The menu options of the File, New Project, will display the familiar New Project dialog box. From the first pane, select 'Setup and Deployment project'; and from the second pane, opt for 'Cab project'. Name the project as y4, and then, click on OK.  The screen that meets the eye, is totally blank. Ensure that the Solution Explorer is active.



Screen 4.121



Right click on the cab file y4, and select the Add menu option. Choose the File option, as shown in screen 4.122.



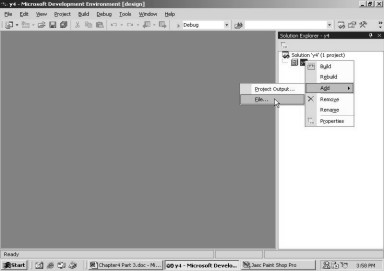

Screen 4.122



The above action will display the Add Files dialog box, where you can add the file a.html, located at C:\. The screen 4.123 shows the Add File Dialog box. The file a.html, now gets integrated in the Cab file, in the Solution Explorer.



Screen 4.123



There are various ways by which you can skin a cat. Thus, if you are allergic to the right mouse button, click on the menu options Project - Add - File, to arrive at the familiar Add File dialog box. Now, add the file a.txt. Then, build the project. The cab file will be visible in the 'debug' subdirectory of 'y4'.



Double click on the Cab file. You will be transported straight to the WinZip application, since Winzip has been registered as the program that manages Cab files.



Screen 4.124



If WinZip is not installed on the computer the contents of this file are shown in Windows Explorer itself. screen 4.125 shows the content of the .cab file in windows explorer.



Screen 4.125

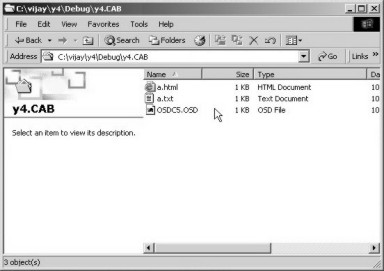

screen 4.124 shows the two files, a.html and a.txt in WinZip. There is yet another file by the name of Osd5c9.osd, which is a simple XML text file. If you Double click on this file, it will open up in Notepad. Thus, we can package as many files as we like, in a Cab file. Creating cab files cannot get any easier than this.



Now, we shall explore the deployment of Web Applications. Save all the files and close the Solution. Now, as always, click on the menu options File - New - Project. In the first window, select 'Visual C# Project', while in the second window, select ASP.Net Web Application. Name the project as y7, and click on OK. Make sure that the Solution window and the Toolbox, are both visible. Drag-and-drop a button from the Toolbox into the form. This is the application to be packaged for deployment.  The ToolBox window will not be utilized anymore; and therefore, it may be closed.

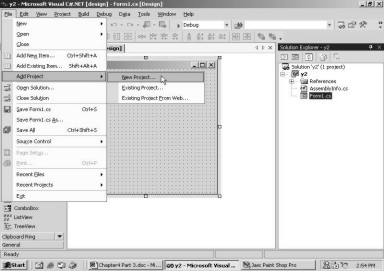

Now, click on File -  Add Project - New Project, and in the Add New Dialog, select Setup and Deployment projects in the Project Types pane; and Web Setup Project in the Template pane. Name the project as y8 and change the location to C:\vijay\. Then, simply click on OK.  The screen that shoots up, is similar to the File System editor, which we have worked with, in the past. The only variation here is that, the names and number of folders are different. Screen 4.126 projects these new names.

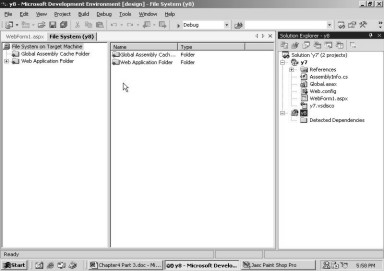

Screen 4.126



Select y8 in the Solution Explore or Web Application in the File System Editor, and right click on it. From the menu that is displayed, choose Add, Project Output. This will bring up the Add Project Output group dialog box. Choose 'Primary Output' from the list, and click on OK. To reduce the size of the msi file, exclude the msm file from the Solution Explorer. Now, build and install the project. Since the solution consists of two projects, the build option shall build both of them. Click on the Next button, of the first customary dialog box. The second screen that comes up, appears very disparate, as is evident in screen 4.127.



Screen 4.127

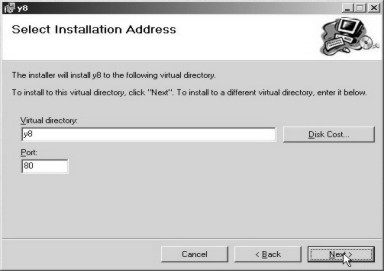

When a Web Server is installed on the machine, it references the folder that contains the requisite files. In the case of IIS, it is c:\inetpub\wwwroot. Thus, the virtual directory y8, will actually be a folder named y8, in the wwwroot subdirectory; and all files will be copied into this subdirectory.



Each packet of data on the Internet is stamped with a number, to differentiate it from other packets carrying data of different protocols. Accordingly, all web packets are assigned the number 80, whereas, all e-mail messages are assigned the number 25, and so on. These numbers, allocated by the worldwide Internet standards body named IANA (Internet Assigned Numbers Authority), are known as port numbers. The web servers, by default, listen on port 80.



The port number should only be modified, when you are absolutely certain about the new value that you are assigning to it. Complete the installation, and then, move into the folder c:\inetpub\wwwroot\y8, to determine whether all the requisite files have been copied or not. The folder does not display any files. However, it contains a bin folder that embodies 16 files. The most important file of all is y7.dll. After having established the presence of this file, close the window and uninstall the project.



Now, we shall copy the source files. Click on the Web Application folder, and delete Primary Output from the second window of the File System Editor. Then, right click on the folder, and choose Add - Project Output. In the dialog box, select the option of Source Files, and click on OK. Build and install the project. Now when we move on to the y8 folder, we discern a list of files. However, there is still no trace of any file with the extension of aspx. So, uninstall the project and then delete the Source files from the second window of the File System Editor. Right click again on Web Application Folder, and move to Add - Project Output. In the dialog box, choose Content Files. Click on OK. Then, Build and Install the project. Visit the y8 folder after the installation completes, and you will stumble upon the file WebForm1.aspx.



However, there isn't a single file in the bin folder. So, the best option now is, to add one more Project Output; however this time, it should be with Primary Output. Click on OK, exclude the msm file from the Solution Explorer, build and install. Start Internet Explorer, and input the URL as http://localhost/y8/WebForm1.aspx. There, the button is displayed in the window; thereby, offering us reassurance that the Web Application has been successfully deployed on the Web Server. The aspx file is not executed in ASP.net applications. It is first converted into a dll, and then, the dll is executed. Thus, in the first instance, the output is sluggish.



Thus, the project options need to be chosen, depending upon the files that you want to copy on to the target machine.
